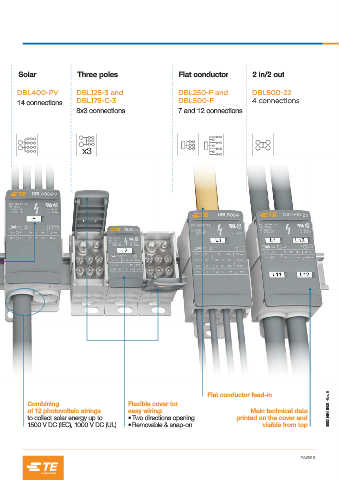

Solar Three poles Flat conductor 2 in/2 out
DBL400-PV DBL125-3 and DBL250-F and DBL500-22
14 connections DBL175-C-3 DBL500-F 4 connections
8x3 connections 7 and 12 connections
x3
Flat conductor feed-in
Combining Flexible cover for
of 12 photovoltaic strings easy wiring: Main technical data 1SNC166011S0201 - Rev. B
to collect solar energy up to • Two directions opening printed on the cover and 1SNC166011S0201
1500 V DC (IEC), 1000 V DC (UL) • Removable & snap-on visible from top
