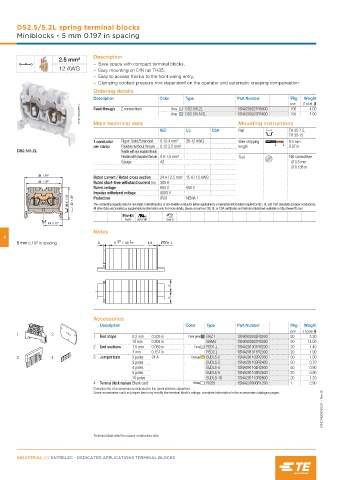

DS2.5/5.2L spring terminal blocks
Miniblocks - 5 mm 0.197 in spacing

Description
2.5 mm²
– Save space with compact terminal blocks,
12 AWG – Easy mounting on DIN rail TH35,
– Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC162040F0014 Blue DS2.5/5.N.2L 1SNA290223R0600 100 4.00
DS2.5/5.2L
2 connections
Grey
Feed-through
100
1SNA290221R0400
4.00
Main technical data
IEC UL CSA Mounting instructions
Rail
TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.12-4 mm² 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.12-2.5 mm² length 0.37 in
DS2.5/5.2L Flexible with non insulated ferrule
Flexible with insulated ferrule 0.5-1.5 mm² Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
38 1.50"
Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG
33 1.30" Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V
Impulse withstand voltage 8000 V
39.5 1.56" 32 1.26" Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R
19 0.75"
Notes
6
5 mm 0.197 in spacing /

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
10 mm 0.394 in BAM4 1SNK900001R0000 50 14.00
2 End sections 1.5 mm 0.059 in Grey FED1.L 1SNA291301R0200 20 1.40
4 mm 0.157 in FED2.L 1SNA291311R2300 20 1.90
3 4 3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
1SNC162090S0201 - Rev. B
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
