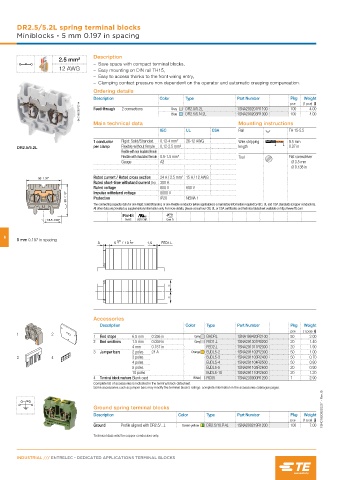

Page 416 - Entrelec Terminal Blocks Master Catalog

DR2.5/5.2L spring terminal blocks
Miniblocks - 5 mm 0.197 in spacing

Description
2.5 mm²
– Save space with compact terminal blocks,
12 AWG – Easy mounting on DIN rail TH15,
– Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Weight
Description Color Type Part Number Pkg (1 pce) g
1SNC162083F0014 Feed-through 2 connections Grey DR2.5/5.2L 1SNA290201R1100 100 4.00
pce
DR2.5/5.N.2L
100
1SNA290203R1300
4.00
Blue
Main technical data Mounting instructions
IEC UL CSA Rail TH 15-5.5
1 conductor Rigid: Solid/Stranded 0.12-4 mm² 26-12 AWG Wire stripping 9.5 mm
DR2.5/5.2L per clamp Flexible without ferrule 0.12-2.5 mm² length 0.37 in
Flexible with non insulated ferrule
Flexible with insulated ferrule 0.5-1.5 mm² Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
33 1.30" Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V
30 1.18" Impulse withstand voltage 8000 V NEMA 1
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
16.5 0.65" RoHS USR CNR Gost R

6
5 mm 0.197 in spacing
/

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 1.5 mm 0.059 in Grey FED1.L 1SNA291301R0200 20 1.40
4 mm 0.157 in FED2.L 1SNA291311R2300 20 1.90
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162092S0201 - Rev. B

Ground spring terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with DR2.5/...L Green-yellow DR2.5/10.P.4L 1SNA290219R1200 100 7.00
Technical data valid for copper conductors only.
