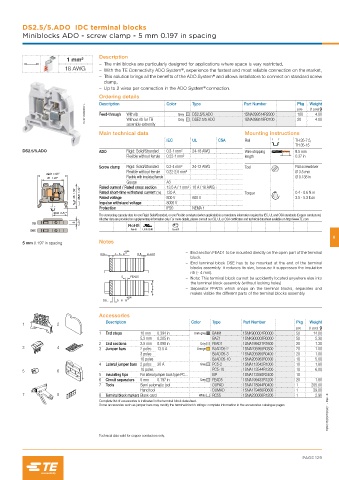

Page 421 - Entrelec Terminal Blocks Master Catalog

DS2.5/5.ADO IDC terminal blocks
Miniblocks ADO - screw clamp - 5 mm 0.197 in spacing

Description
1 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
18 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp,
– Up to 2 wires per connection in the ADO System connection.
®
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163080F0014 Feed-through With rib Grey DS2.5/5.ADO 1SNA399514R2300 pce (1 pce) g
4.00
100
4.00
20
Without rib for TB
Grey
1SNA399518R0700
DSE2.5/5.ADO
assembly extremity
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
DS2.5/5.ADO ADO Rigid: Solid/Stranded 0.2-1 mm² 24-18 AWG Wire stripping 9.5 mm
Flexible without ferrule 0.22-1 mm² length 0.37 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 24-12 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-2.5 mm² Ø 3.5 mm
42.3 1.66"
31 1.22" Flexible with insulated ferrule Ø 0.138 in
Gauge A3
Rated current / Rated cross section
13.5 A / 1 mm² 10 A / 18 AWG
43 1.69" 35.5 1.39" Rated short-time withstand current (1s) 120 A 600 V Torque 0.4 - 0.6 N.m
800 V
Rated voltage
3.5 - 5.3 lb.in
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
20.6 0.81"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
0.20"
5
DS
DSE RoHS USR CNR Gost R
6
Notes
5 mm 0.197 in spacing
– End section FEAD1 to be mounted directly on the open part of the terminal
DSE... 5 - 6 - 8 FEAD1
block.
– End terminal block DSE has to be mounted at the end of the terminal
blocks assembly: it reduces its size, because it suppresses the insulation
rib (- 4 mm).
FEAD5
– Nota: This terminal block cannot be accidently located anywhere else into
the terminal block assembly (without locking holes)
– Separator FEAD5 which snaps on the terminal blocks, separates and
makes visible the different parts of the terminal blocks assembly.
DS... 5 - 6 - 8
Accessories
Description Color Type Part Number Pkg Weight
1 2
pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.5 mm 0.098 in Grey FEAD1 1SNA199421R1600 20 1.30
3 4 3 Jumper bars 2 poles 13.5 A Orange BJADO5-2 1SNA205955R0300 20 1.00
3 poles BJADO5-3 1SNA205956R0400 20 1.00
10 poles BJADO5-10 1SNA205963R0300 10 5.00
4 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
10 poles PC5-10 1SNA113544R1200 10 6.00
5 6
5 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
6 Circuit separators 5 mm 0.197 in Grey FEAD5 1SNA199433R1200 20 1.80
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
7 8 8 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
1SNC163027S0201 - Rev. B
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Technical data valid for copper conductors only.
