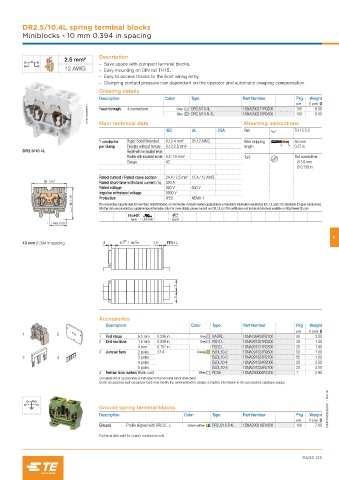

DR2.5/10.4L spring terminal blocks
Miniblocks - 10 mm 0.394 in spacing

Description
2.5 mm²
– Save space with compact terminal blocks,
12 AWG – Easy mounting on DIN rail TH15,
– Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC162063F0014 Blue DR2.5/10.N.4L 1SNA290213R0400 100 6.00
1SNA290211R0200
Feed-through
Grey
4 connections
6.00
100
DR2.5/10.4L
Main technical data
TH 15-5.5
Rail
IEC UL CSA Mounting instructions
1 conductor Rigid: Solid/Stranded 0.12-4 mm² 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.12-2.5 mm² length 0.37 in
DR2.5/10.4L Flexible with non insulated ferrule
Flexible with insulated ferrule 0.5-1.5 mm² Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG
33 1.30" Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V
Impulse withstand voltage 8000 V
30 1.18" Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R
16.5 0.65"

6
10 mm 0.394 in spacing /

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 1.5 mm 0.059 in Grey FED1.L 1SNA291301R0200 20 1.40
4 mm 0.157 in FED2.L 1SNA291311R2300 20 1.90
3 Jumper bars 2 poles 24 A Orange BJDL10-2 1SNA291322R2600 50 1.00
3 4 3 poles BJDL10-3 1SNA291323R2700 50 1.00
4 poles BJDL10-4 1SNA291324R2000 20 2.00
5 poles BJDL10-5 1SNA291325R2100 20 2.00
4 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162093S0201 - Rev. B

Ground spring terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with DR2.5/...L Green-yellow DR2.5/10.P.4L 1SNA290219R1200 100 7.00
Technical data valid for copper conductors only.
