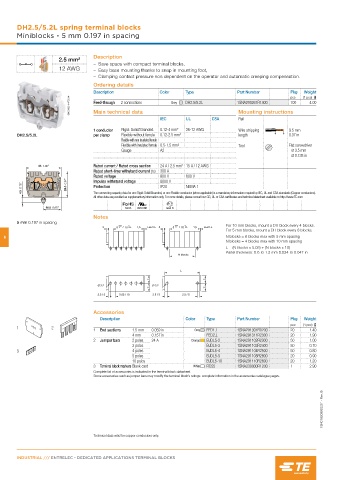

DH2.5/5.2L spring terminal blocks
Miniblocks - 5 mm 0.197 in spacing

Description
2.5 mm²
– Save space with compact terminal blocks,
12 AWG – Easy base mounting thanks to snap in mounting foot,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Description Color Type Part Number Pkg (1 pce) g
Weight
pce
1SNC162114F0014 Feed-through 2 connections Grey DH2.5/5.2L 1SNA290261R1400 100 4.00
Main technical data
Mounting instructions
IEC UL CSA Rail
1 conductor Rigid: Solid/Stranded 0.12-4 mm² 26-12 AWG Wire stripping 9.5 mm
DH2.5/5.2L per clamp Flexible without ferrule 0.12-2.5 mm² length 0.37 in
Flexible with non insulated ferrule
Flexible with insulated ferrule 0.5-1.5 mm² Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
33 1.30" Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V
Impulse withstand voltage
8000 V
4.5 0.18" 24.5 0.97" Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
16.5 0.65" RoHS USR CNR Gost R
Notes
5 mm 0.197 in spacing
For 10 mm blocks, mount a DH block every 4 blocks.
/ /
For 5 mm blocks, mount a DH block every 8 blocks.
6 N blocks = 8 blocks max with 5 mm spacing
N blocks = 4 blocks max with 10 mm spacing
L = (N blocks x 5.05) + (N blocks x 10)
Panel thickness: 0.6 to 1.2 mm 0.024 to 0.047 in

Ø 3.2 Ø 3.2
2.5 / 5 5.05 / 10 2.5 / 5 2.5 / 5

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End sections 1.5 mm 0.059 in Grey FED1.L 1SNA291301R0200 20 1.40
4 mm 0.157 in FED2.L 1SNA291311R2300 20 1.90
2 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 poles BJDL5-3 1SNA291103R2400 50 0.70
3 4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
3 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC162099S0201 - Rev. B

Technical data valid for copper conductors only.
