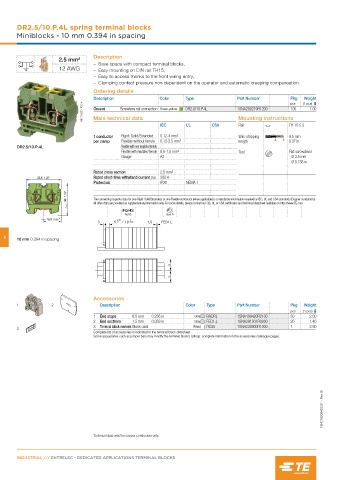

Page 418 - Entrelec Terminal Blocks Master Catalog

DR2.5/10.P.4L spring terminal blocks
Miniblocks - 10 mm 0.394 in spacing

Description
2.5 mm²
– Save space with compact terminal blocks,
12 AWG – Easy mounting on DIN rail TH15,
– Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Description Color Type Part Number Pkg (1 pce) g
Weight
1SNC162071F0014 Ground Screwless rail connection Green-yellow DR2.5/10.P.4L 1SNA290219R1200 100 7.00
pce
Mounting instructions
Main technical data
IEC UL CSA Rail TH 15-5.5
1 conductor Rigid: Solid/Stranded 0.12-4 mm² Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.12-2.5 mm² length 0.37 in
DR2.5/10.P.4L Flexible with non insulated ferrule
Flexible with insulated ferrule 0.5-1.5 mm² Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated cross section 2.5 mm²
33.5 1.32" Rated short-time withstand current (1s) 300 A
Protection IP20 NEMA 1
30 1.18" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com

RoHS Gost R
16.5 0.65"
/

6
10 mm 0.394 in spacing

Accessories
1 2 Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 1.5 mm 0.059 in Grey FED1.L 1SNA291301R0200 20 1.40
3 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
3
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC162094S0201 - Rev. B

Technical data valid for copper conductors only.
