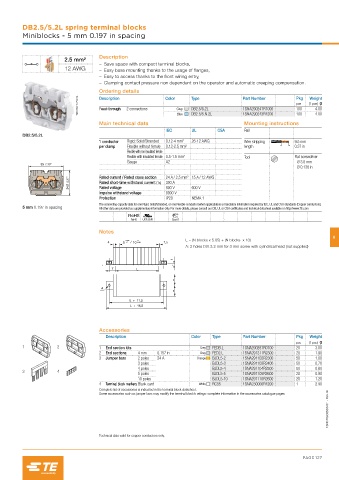

DB2.5/5.2L spring terminal blocks
Miniblocks - 5 mm 0.197 in spacing

Description
2.5 mm²
– Save space with compact terminal blocks,
12 AWG – Easy base mounting thanks to the usage of flanges,
– Easy to access thanks to the front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details Color Type Part Number Pkg Weight
1SNC162112F0014 Feed-through 2 connections Grey DB2.5/5.2L 1SNA290241R1000 pce (1 pce) g
Description
100
4.00
100
DB2.5/5.N.2L
1SNA290243R1200
4.00
Blue
Main technical data Mounting instructions
IEC UL CSA Rail
DB2.5/5.2L
1 conductor Rigid: Solid/Stranded 0.12-4 mm² 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.12-2.5 mm² length 0.37 in
Flexible with non insulated ferrule
Flexible with insulated ferrule 0.5-1.5 mm² Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
33 1.30"
Ø 0.138 in
24.5 0.97" Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG
300 A
Rated short-time withstand current (1s)
Rated voltage
800 V
600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
5 mm 0.197 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
RoHS USR CNR Gost R
Notes
6
L = (N blocks x 5.05) + (N blocks x 10)
/
A: 2 holes DIA 3.2 mm for 3 mm screw with cylindrical head (not supplied)

A

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End section kits Grey FEDB.L 1SNA290281R0100 20 3.00
2 End sections 4 mm 0.157 in Grey FED2.L 1SNA291311R2300 20 1.90
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
3 4
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
1SNC162095S0201 - Rev. B
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
