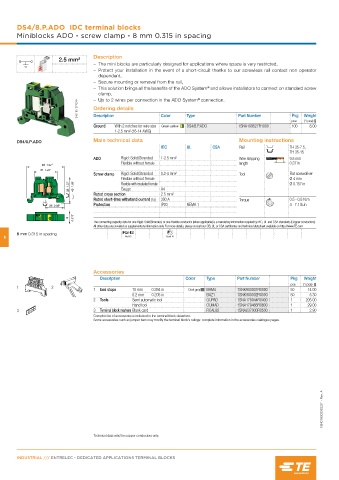

Page 424 - Entrelec Terminal Blocks Master Catalog

DS4/8.P.ADO IDC terminal blocks
Miniblocks ADO - screw clamp - 8 mm 0.315 in spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
– Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator
dependent,
– Secure mounting or removal from the rail,
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp, ®
– Up to 2 wires per connection in the ADO System connection.
1SNC163127F0014 Ordering details Color Type Part Number Pkg Weight
Description
pce (1 pce) g
Ground With 2 notches for wire size Green-yellow DS4/8.P.ADO 1SNA199527R1000 100 8.00
1-2.5 mm² (16-14 AWG)

DS4/8.P.ADO Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² Wire stripping 9.5 mm
49 1.92" Flexible without ferrule length 0.37 in
31 1.22"
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² Tool Flat screwdriver
Flexible without ferrule Ø 4 mm
35 1.37" 43 1.69" Flexible with insulated ferrule A4 Ø 0.157 in
Gauge
Rated cross section 2.5 mm²
Rated short-time withstand current (1s) 300 A Torque 0.5 - 0.8 N.m
25 0.98" Protection IP20 NEMA 1 4 - 7.1 lb.in

8 0.315" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
8 mm 0.315 in spacing
6 RoHS Gost R

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
3 3 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163030S0201 - Rev. A

Technical data valid for copper conductors only.
