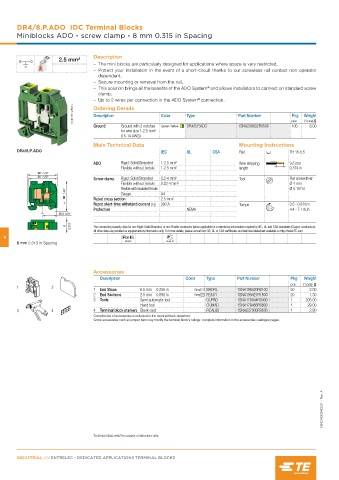

Page 428 - Entrelec Terminal Blocks Master Catalog

DR4/8.P.ADO IDC Terminal Blocks
Miniblocks ADO - screw clamp - 8 mm 0.315 in Spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
– Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator
dependent,
– Secure mounting or removal from the rail,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp,
®
– Up to 2 wires per connection in the ADO System connection.
1SNC163144F0014 Ordering Details Color Type Part Number Pkg Weight
Description
Ground Ground with 2 notches Green-Yellow DR4/8.P.ADO 1SNA299632R0500 pce (1 pce) g
100
8.00
for wire size 1-2.5 mm²
(16-14 AWG)
Main Technical Data Mounting Instructions
DR4/8.P.ADO IEC UL CSA Rail TH 15-5.5

ADO Rigid: Solid/Stranded 1-2.5 mm² Wire stripping 9.5 mm
Flexible without ferrule 1-2.5 mm² length 0.374 in
32 1.26"
31 1.22"
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² Tool Flat screwdriver
Flexible without ferrule 0.22-4 mm² Ø 4 mm
Flexible with insulated ferrule
Ø 0.157 in
33 1.29" Rated cross section A4
Gauge
2.5 mm²
Rated short-time withstand current (1s) 300 A Torque 0.5 - 0.8 N.m
Protection NEMA 4.4 - 7.1 lb.in
15.5 0.61"
8 0.315" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
6
RoHS Gost R
8 mm 0.315 in Spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End Stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End Sections 2.5 mm 0.098 in Grey FEAD1 1SNA199421R1600 20 1.30
3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
3 4 4 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163034S0201 - Rev. A

Technical data valid for copper conductors only.
