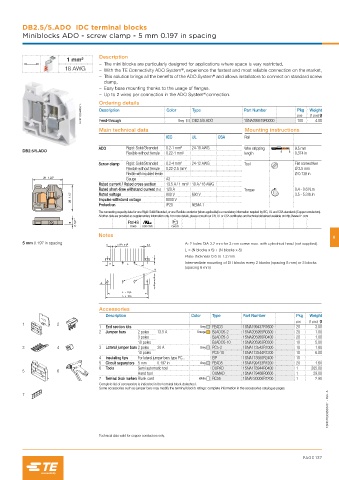

Page 429 - Entrelec Terminal Blocks Master Catalog

DB2.5/5.ADO IDC terminal blocks
Miniblocks ADO - screw clamp - 5 mm 0.197 in spacing

Description
1 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
18 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp,
– Easy base mounting thanks to the usage of flanges.
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details
1SNC163049F0014 Description Color Grey Type Part Number Pkg Weight
(1 pce) g
pce
Feed-through
DB2.5/5.ADO
100
4.00
1SNA399519R0000
Main technical data Mounting instructions
IEC UL CSA Rail
ADO Rigid: Solid/Stranded 0.2-1 mm² 24-18 AWG Wire stripping 9.5 mm
DB2.5/5.ADO
Flexible without ferrule 0.22-1 mm² length 0.374 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 24-12 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-2.5 mm² Ø 3.5 mm
Flexible with insulated ferrule Ø 0.138 in
31 1.22"
Gauge A3
Rated current / Rated cross section 13.5 A / 1 mm² 10 A / 18 AWG
Rated short-time withstand current (1s) 120 A 600 V Torque 0.4 - 0.6 N.m
28 1.10" Impulse withstand voltage 8000 V NEMA 1
3.5 - 5.3 lb.in
800 V
Rated voltage
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
0.197"
5 RoHS USR CNR Gost R
Notes 6
5 mm 0.197 in spacing A: 2 holes DIA 3.2 mm for 3 mm screw max. with cylindrical head (not supplied).
/
L = (N blocks x 6) + (N blocks x 8)
Plate thickness 0.6 to 1.2 mm
Intermediate mounting of DH blocks every 2 blocks (spacing 8 mm) or 3 blocks
(spacing 6 mm)
B
A

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End section kits Grey FEAD3 1SNA199437R1600 20 3.00
2 Jumper bars 2 poles 13.5 A Orange BJADO5-2 1SNA205955R0300 20 1.00
3 poles BJADO5-3 1SNA205956R0400 20 1.00
10 poles BJADO5-10 1SNA205963R0300 10 5.00
3 4 3 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
10 poles PC5-10 1SNA113544R1200 10 6.00
4 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
5 Circuit separators 5 mm 0.197 in Grey FEAD5 1SNA199433R1200 20 1.80
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
5 6
Hand tool OUMAD 1SNA179466R0600 1 29.00
7 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC163035S0201 - Rev. A
7

Technical data valid for copper conductors only.
