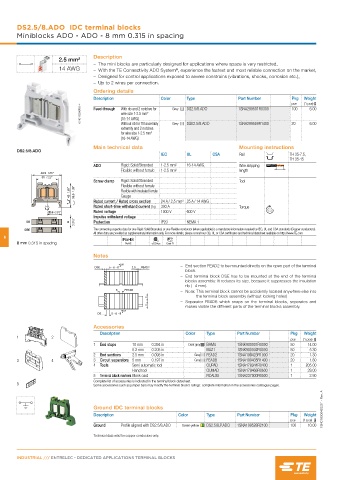

Page 434 - Entrelec Terminal Blocks Master Catalog

DS2.5/8.ADO IDC terminal blocks
Miniblocks ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC163096F0014 wire size 1-2.5 mm²
Feed-through
With rib and 2 notches for
100
DS2.5/8.ADO
6.00
Grey
1SNA299501R0300
(16-14 AWG)
Without rib for TB assembly
extremity and 2 notches Grey DSE2.5/8.ADO 1SNA299559R1400 20 6.00
for wire size 1-2.5 mm²
(16-14 AWG)
Main technical data Mounting instructions
DS2.5/8.ADO
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping
Flexible without ferrule 1-2.5 mm² length
42.3 1.66"
31 1.22"
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
43 1.69" 35.5 1.39" Flexible with insulated ferrule
Gauge
Rated current / Rated cross section
300 A
Rated short-time withstand current (1s) 24 A / 2.5 mm² 25 A / 14 AWG Torque
20.6 0.81" Rated voltage 1000 V 600 V
Impulse withstand voltage
DS 8 0.315" Protection IP20 NEMA 1
DSE The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
6
C US
8 mm 0.315 in spacing RoHS cCSAus Gost R
Notes
– End section FEAD2 to be mounted directly on the open part of the terminal
DSE... 5 - 6 - 8 FEAD2
block.
– End terminal block DSE has to be mounted at the end of the terminal
blocks assembly: It reduces its size, because it suppresses the insulation
rib (- 4 mm).
FEAD6
– Nota: This terminal block cannot be accidently located anywhere else into
the terminal block assembly (without locking holes)
– Separator FEAD6 which snaps on the terminal blocks, separates and
makes visible the different parts of the terminal blocks assembly.
DS... 5 - 6 - 8
Accessories
Description Color Type Part Number Pkg Weight
1 2
pce (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.5 mm 0.098 in Grey FEAD2 1SNA199423R1000 20 1.30
3 4 3 Circuit separators 5 mm 0.197 in Grey FEAD6 1SNA199435R1400 20 1.80
4 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
5 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC163064S0201 - Rev. A

Ground IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with DS2.5/8.ADO Green-yellow DS2.5/8.P.ADO 1SNA199528R2100 100 10.00
Technical data valid for copper conductors only.
