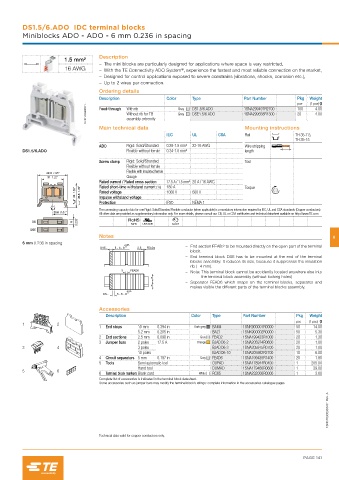

DS1.5/6.ADO IDC terminal blocks
Miniblocks ADO - ADO - 6 mm 0.236 in spacing

Description
1.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC163096F0014 Without rib for TB Grey DSE1.5/6.ADO 1SNA299558R1300 20 4.00
Grey
DS1.5/6.ADO
Feed-through
100
With rib
1SNA299497R2700
4.00
assembly extremity
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 0.28-1.5 mm² 22-16 AWG Wire stripping
DS1.5/6.ADO Flexible without ferrule 0.34-1.5 mm² length
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
42.3 1.66" Flexible with insulated ferrule
31 1.22" Gauge
Rated current / Rated cross section 17.5 A / 1.5 mm² 20 A / 16 AWG
180 A
43 1.69" 35.5 1.39" Rated short-time withstand current (1s) 1000 V 600 V Torque
Rated voltage
Impulse withstand voltage
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
20.6 0.81"
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
DS 6 0.238" RoHS USR CNR Gost R
DSE
Notes 6
6 mm 0.236 in spacing
– End section FEAD2 to be mounted directly on the open part of the terminal
DSE... 5 - 6 - 8 FEAD2
block.
– End terminal block DSE has to be mounted at the end of the terminal
blocks assembly: It reduces its size, because it suppresses the insulation
rib (- 4 mm).
FEAD6
– Nota: This terminal block cannot be accidently located anywhere else into
the terminal block assembly (without locking holes)
– Separator FEAD6 which snaps on the terminal blocks, separates and
makes visible the different parts of the terminal blocks assembly.
DS... 5 - 6 - 8
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.5 mm 0.098 in Grey FEAD2 1SNA199423R1000 20 1.30
3 Jumper bars 2 poles 17.5 A Orange BJADO6-2 1SNA205974R0600 20 1.00
3 4 3 poles BJADO6-3 1SNA205975R0700 20 1.00
10 poles BJADO6-10 1SNA205982R2700 10 6.00
4 Circuit separators 5 mm 0.197 in Grey FEAD6 1SNA199435R1400 20 1.80
5 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 6
6 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC163063S0201 Rev. A

Technical data valid for copper conductors only.
