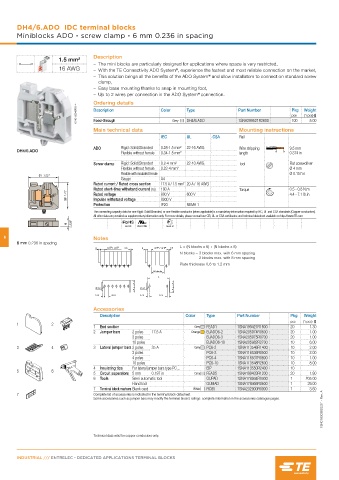

Page 432 - Entrelec Terminal Blocks Master Catalog

DH4/6.ADO IDC terminal blocks
Miniblocks ADO - screw clamp - 6 mm 0.236 in spacing

Description
1.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
®
– This solution brings all the benefits of the ADO System and allow installators to connect on standard screw
clamp,
– Easy base mounting thanks to snap in mounting foot,
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details
1SNC163048F0014 Description Color Grey Type Part Number Pkg Weight
(1 pce) g
pce
Feed-through
DH4/6.ADO
1SNA299521R2600
5.00
100
Main technical data Mounting instructions
IEC UL CSA Rail
ADO Rigid: Solid/Stranded 0.28-1.5 mm² 22-16 AWG Wire stripping 9.5 mm
DH4/6.ADO
Flexible without ferrule 0.34-1.5 mm² length 0.374 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 22-10 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-4 mm² Ø 4 mm
Flexible with insulated ferrule Ø 0.157 in
31 1.22"
Gauge A4
Rated current / Rated cross section 17.5 A / 1.5 mm² 20 A / 16 AWG
Rated short-time withstand current (1s) 180 A Torque 0.5 - 0.8 N.m
28 1.10" Rated voltage 800 V 600 V 4.4 - 7.1 lb.in
Impulse withstand voltage
8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
0.238"
6 RoHS USR CNR Gost R
6 Notes
6 mm 0.236 in spacing
L = (N blocks x 6) + (N blocks x 8)
/ /
N blocks = 3 blocks max. with 6 mm spacing
2 blocks max. with 8 mm spacing
Plate thickness 0.6 to 1.2 mm

3 / 4 6 / 8 3 / 4 3 / 4
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End section Grey FEAD1 1SNA199421R1600 20 1.30
2 Jumper bars 2 poles 17.5 A Orange BJADO6-2 1SNA205974R0600 20 1.00
3 poles BJADO6-3 1SNA205975R0700 20 1.00
10 poles BJADO6-10 1SNA205982R2700 10 6.00
3 4 3 Lateral jumper bars 2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
3 poles PC6-3 1SNA116536R0500 10 2.00
4 poles PC6-4 1SNA116537R0600 10 1.00
10 poles PC6-10 1SNA113548R2600 10 8.00
4 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
5 6
5 Circuit separators 5 mm 0.197 in Grey FEAD5 1SNA199433R1200 20 1.80
6 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
7 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
1SNC163038S0201 - Rev. A
7 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
