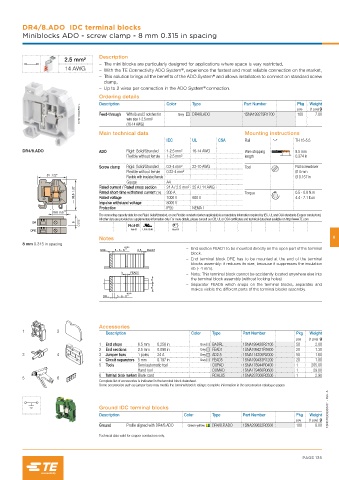

DR4/8.ADO IDC terminal blocks
Miniblocks ADO - screw clamp - 8 mm 0.315 in spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
®
clamp,
– Up to 2 wires per connection in the ADO System connection.
®
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163090F0014 Feed-through With rib and 2 notches for Grey DR4/8.ADO 1SNA199279R1700 pce (1 pce) g
7.00
100
wire size 1-2.5 mm²
(16-14 AWG)
Main technical data Mounting instructions
IEC UL CSA Rail TH 15-5.5

DR4/8.ADO ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping 9.5 mm
Flexible without ferrule 1-2.5 mm² length 0.374 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 22-10 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-4 mm² Ø 4 mm
31 1.22"
Flexible with insulated ferrule Ø 0.157 in
Gauge A4
Rated current / Rated cross section
24 A / 2.5 mm² 25 A / 14 AWG
33.5 1.32" Rated short-time withstand current (1s) 300 A 600 V Torque 0.5 - 0.8 N.m
4.4 - 7.1 lb.in
1000 V
Rated voltage
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
15.5 0.61"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
DR 8 0.315" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
DRE RoHS USR CNR Gost R
Notes 6
8 mm 0.315 in spacing
– End section FEAD1 to be mounted directly on the open part of the terminal
DRE... 5 - 6 - 8 FEAD1
block.
– End terminal block DRE has to be mounted at the end of the terminal
blocks assembly: it reduces its size, because it suppresses the insulation
rib (- 4 mm).
FEAD5
– Nota: This terminal block cannot be accidently located anywhere else into
the terminal block assembly (without locking holes)
– Separator FEAD5 which snaps on the terminal blocks, separates and
makes visible the different parts of the terminal blocks assembly.
DR... 5 - 6 - 8

Accessories
1 2
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 2.5 mm 0.098 in Grey FEAD1 1SNA199421R1600 20 1.30
3 4 3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
4 Circuit separators 5 mm 0.197 in Grey FEAD5 1SNA199433R1200 20 1.80
5 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
6 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
5 6
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC163033S0201 - Rev. A

Ground IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with DR4/8.ADO Green-yellow DR4/8.P.ADO 1SNA299632R0500 100 8.00
Technical data valid for copper conductors only.
