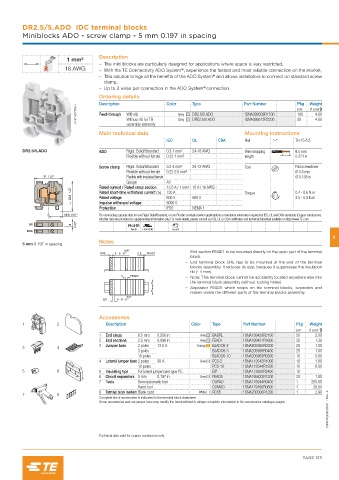

Page 425 - Entrelec Terminal Blocks Master Catalog

DR2.5/5.ADO IDC terminal blocks
Miniblocks ADO - screw clamp - 5 mm 0.197 in spacing

Description
1 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
18 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp,
®
– Up to 2 wires per connection in the ADO System connection.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163073F0014 Feed-through With rib Grey DR2.5/5.ADO 1SNA399509R1700 pce (1 pce) g
4.00
100
Without rib for TB
Grey
20
4.00
1SNA399513R2200
DRE2.5/5.ADO
assembly extremity
Main technical data Mounting instructions
IEC UL CSA Rail TH 15-5.5
DR2.5/5.ADO ADO Rigid: Solid/Stranded 0.2-1 mm² 24-18 AWG Wire stripping 9.5 mm
Flexible without ferrule 0.22-1 mm² length 0.374 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 24-12 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-2.5 mm² Ø 3.5 mm
31 1.22" Flexible with insulated ferrule Ø 0.138 in
Gauge A3
Rated current / Rated cross section
13.5 A / 1 mm² 10 A / 18 AWG
33.5 1.32" Rated short-time withstand current (1s) 120 A 600 V Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
800 V
Rated voltage
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
15.5 0.61" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
DR 5 0.20"
RoHS USR CNR Gost R
DRE
6
Notes
5 mm 0.197 in spacing
– End section FEAD1 to be mounted directly on the open part of the terminal
DRE... 5 - 6 - 8 FEAD1
block.
– End terminal block DRE has to be mounted at the end of the terminal
blocks assembly: it reduces its size, because it suppresses the insulation
rib (- 4 mm).
FEAD5
– Nota: This terminal block cannot be accidently located anywhere else into
the terminal block assembly (without locking holes)
– Separator FEAD5 which snaps on the terminal blocks, separates and
makes visible the different parts of the terminal blocks assembly.
DR... 5 - 6 - 8
Accessories
1 2 Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 2.5 mm 0.098 in Grey FEAD1 1SNA199421R1600 20 1.30
3 Jumper bars 2 poles 13.5 A Orange BJADO5-2 1SNA205955R0300 20 1.00
3 4
3 poles BJADO5-3 1SNA205956R0400 20 1.00
10 poles BJADO5-10 1SNA205963R0300 10 5.00
4 Lateral jumper bars 2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
10 poles PC5-10 1SNA113544R1200 10 6.00
5 6 5 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
6 Circuit separators 5 mm 0.197 in Grey FEAD5 1SNA199433R1200 20 1.80
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank card White RC55 1SNA230000R1200 1 2.90
1SNC163031S0201 - Rev. A
7 8
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
