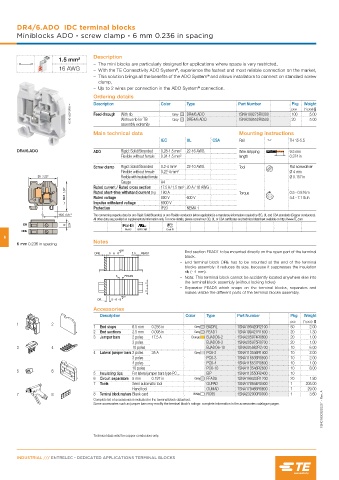

DR4/6.ADO IDC terminal blocks
Miniblocks ADO - screw clamp - 6 mm 0.236 in spacing

Description
1.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
®
– This solution brings all the benefits of the ADO System and allows installators to connect on standard screw
clamp,
– Up to 2 wires per connection in the ADO System connection.
®
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163073F0014 Feed-through With rib Grey DR4/6.ADO 1SNA199275R0300 pce (1 pce) g
100
5.00
20
Without rib for TB
Grey
1SNA299552R0500
DRE4/6.ADO
5.00
assembly extremity
Main technical data Mounting instructions
IEC UL CSA Rail TH 15-5.5
DR4/6.ADO ADO Rigid: Solid/Stranded 0.28-1.5 mm² 22-16 AWG Wire stripping 9.5 mm
Flexible without ferrule 0.34-1.5 mm² length 0.374 in
Screw clamp Rigid: Solid/Stranded 0.2-4 mm² 22-10 AWG Tool Flat screwdriver
Flexible without ferrule 0.22-4 mm² Ø 4 mm
31 1.22" Flexible with insulated ferrule Ø 0.157 in
Gauge A4
Rated current / Rated cross section
17.5 A / 1.5 mm² 20 A / 16 AWG
33.5 1.32" Rated short-time withstand current (1s) 180 A 600 V Torque 0.5 - 0.8 N.m
800 V
Rated voltage
4.4 - 7.1 lb.in
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
15.5 0.61" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
0.24" 6
DR
RoHS USR CNR Gost R
DRE
6
Notes
6 mm 0.236 in spacing
– End section FEAD1 to be mounted directly on the open part of the terminal
DRE... 5 - 6 - 8 FEAD1
block.
– End terminal block DRE has to be mounted at the end of the terminal
blocks assembly: it reduces its size, because it suppresses the insulation
rib (- 4 mm).
FEAD5
– Nota: This terminal block cannot be accidently located anywhere else into
the terminal block assembly (without locking holes)
– Separator FEAD5 which snaps on the terminal blocks, separates and
makes visible the different parts of the terminal blocks assembly.
DR... 5 - 6 - 8
Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 2.5 mm 0.098 in Grey FEAD1 1SNA199421R1600 20 1.30
3 Jumper bars 2 poles 17.5 A Orange BJADO6-2 1SNA205974R0600 20 1.00
3 poles BJADO6-3 1SNA205975R0700 20 1.00
3 4 10 poles BJADO6-10 1SNA205982R2700 10 6.00
4 Lateral jumper bars 2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
3 poles PC6-3 1SNA116536R0500 10 2.00
4 poles PC6-4 1SNA116537R0600 10 1.00
10 poles PC6-10 1SNA113548R2600 10 8.00
5 6
5 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
6 Circuit separators 5 mm 0.197 in Grey FEAD5 1SNA199433R1200 20 1.80
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
1SNC163032S0201 - Rev. A
7 8 8 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

Technical data valid for copper conductors only.
