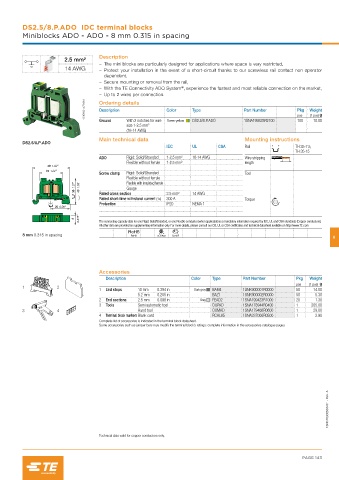

Page 435 - Entrelec Terminal Blocks Master Catalog

DS2.5/8.P.ADO IDC terminal blocks
Miniblocks ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
14 AWG – Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator
dependent,
– Secure mounting or removal from the rail,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Up to 2 wires per connection.
1SNC163140F0014 Ordering details Color Type Part Number Pkg Weight
Description
(1 pce) g
pce
Ground With 2 notches for wire Green-yellow DS2.5/8.P.ADO 1SNA199528R2100 100 10.00
size 1-2.5 mm 2
(16-14 AWG)
Main technical data Mounting instructions
DS2.5/8.P.ADO
IEC UL CSA Rail TH 35-7.5,
TH 35-15
ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping
Flexible without ferrule 1-2.5 mm² length
49 1.92"
31 1.22"
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
35 1.37" 43 1.69" Flexible with insulated ferrule
Gauge
Rated cross section
300 A
Rated short-time withstand current (1s) 2.5 mm² 14 AWG Torque
Protection IP20 NEMA 1
25 0.98"
0.315"
8 The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C
US
8 mm 0.315 in spacing RoHS cCSAus Gost R 6

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.5 mm 0.098 in Grey FEAD2 1SNA199423R1000 20 1.30
3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
3 4 Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163065S0201 - Rev. A

Technical data valid for copper conductors only.
