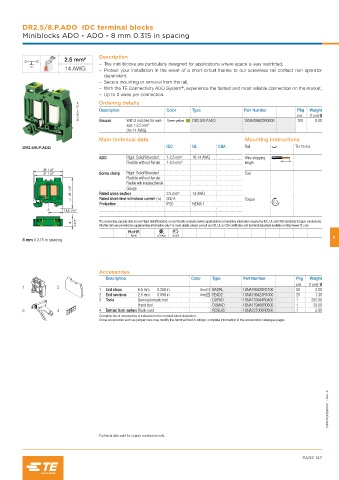

Page 439 - Entrelec Terminal Blocks Master Catalog

DR2.5/8.P.ADO IDC terminal blocks
Miniblocks ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
14 AWG – Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator
dependent,
– Secure mounting or removal from the rail,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Up to 2 wires per connection.
Ordering details
1SNC163141F0014 Description Color Type Part Number Pkg Weight
(1 pce) g
pce
Ground
With 2 notches for wire
size 1-2.5 mm 2 Green-yellow DR2.5/8.P.ADO 1SNA299633R0600 100 8.00
(16-14 AWG)
Main technical data Mounting instructions
DR2.5/8.P.ADO IEC UL CSA Rail TH 15-5.5
ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping
Flexible without ferrule 1-2.5 mm² length
32 1.26"
31 1.22" Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
33 1.29" Rated cross section 2.5 mm² 14 AWG
Gauge
Rated short-time withstand current (1s) 300 A Torque
Protection IP20 NEMA 1
15.5 0.61"
0.315" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
8 All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
RoHS cCSAus Gost R 6
8 mm 0.315 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 2.5 mm 0.098 in Grey FEAD2 1SNA199423R1000 20 1.30
3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
3 4 4 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163069S0201 - Rev. A

Technical data valid for copper conductors only.

PAGE 147
