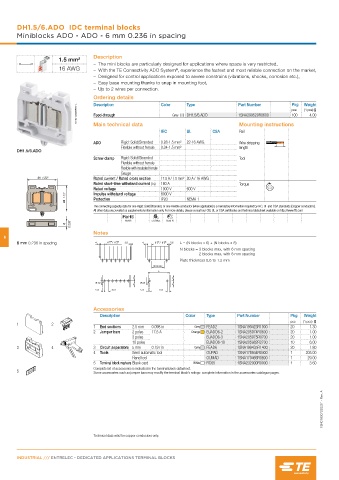

Page 442 - Entrelec Terminal Blocks Master Catalog

DH1.5/6.ADO IDC terminal blocks
Miniblocks ADO - ADO - 6 mm 0.236 in spacing

Description
1.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Easy base mounting thanks to snap in mounting foot,
– Up to 2 wires per connection.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163093F0014 Feed-through Grey DH1.5/6.ADO 1SNA299529R0600 pce (1 pce) g
4.00
100
Main technical data
IEC UL CSA Mounting instructions
Rail
ADO Rigid: Solid/Stranded 0.28-1.5 mm² 22-16 AWG Wire stripping
Flexible without ferrule 0.34-1.5 mm² length
DH1.5/6.ADO
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
Gauge
31 1.22" Rated current / Rated cross section 17.5 A / 1.5 mm² 20 A / 16 AWG
Rated short-time withstand current (1s) 180 A Torque
Rated voltage 1000 V 600 V
28 1.10" Impulse withstand voltage 8000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
C US
0.238" RoHS cCSAus Gost R
6
Notes
6
6 mm 0.236 in spacing / / L = (N blocks x 6) + (N blocks x 8)
N blocks = 3 blocks max. with 6 mm spacing
2 blocks max. with 8 mm spacing
Plate thickness 0.6 to 1.2 mm

3 / 4 6 / 8 3 / 4 3 / 4

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End sections 2.5 mm 0.098 in Grey FEAD2 1SNA199423R1000 20 1.30
2 Jumper bars 2 poles 17.5 A Orange BJADO6-2 1SNA205974R0600 20 1.00
3 poles BJADO6-3 1SNA205975R0700 20 1.00
10 poles BJADO6-10 1SNA205982R2700 10 6.00
3 4 3 Circuit separators 5 mm 0.197 in Grey FEAD6 1SNA199435R1400 20 1.80
4 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
5 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163072S0201 - Rev. A

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
