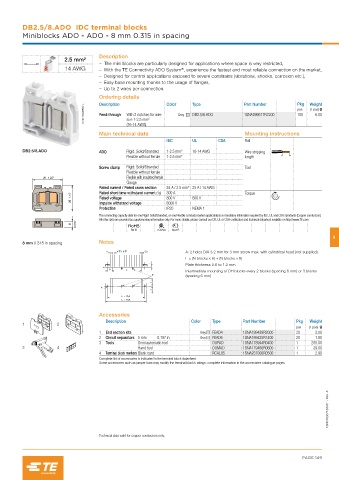

Page 441 - Entrelec Terminal Blocks Master Catalog

DB2.5/8.ADO IDC terminal blocks
Miniblocks ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Easy base mounting thanks to the usage of flanges,
– Up to 2 wires per connection.
Ordering details Color Type Part Number Pkg Weight
Description
1SNC163095F0014 Feed-through With 2 notches for wire Grey DB2.5/8.ADO 1SNA299517R2200 pce (1 pce) g
100
6.00
2
size 1-2.5 mm
(16-14 AWG)
Main technical data Mounting instructions
IEC UL CSA Rail
DB2.5/8.ADO ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping
Flexible without ferrule 1-2.5 mm² length
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
31 1.22" Flexible with insulated ferrule
Gauge
Rated current / Rated cross section 24 A / 2.5 mm² 25 A / 14 AWG Torque
300 A
Rated short-time withstand current (1s)
28 1.10" Rated voltage 800 V 600 V
Impulse withstand voltage
8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
8 0.315" C US
RoHS cCSAus Gost R
6
8 mm 0.315 in spacing Notes
/ A: 2 holes DIA 3.2 mm for 3 mm screw max. with cylindrical head (not supplied).
L = (N blocks x 6) + (N blocks x 8)
Plate thickness 0.6 to 1.2 mm
Intermediate mounting of DH blocks every 2 blocks (spacing 8 mm) or 3 blocks
B
(spacing 6 mm)
A

Accessories
Description Color Type Part Number Pkg Weight
1 2
pce (1 pce) g
1 End section kits Grey FEAD4 1SNA199439R2000 20 3.00
2 Circuit separators 5 mm 0.197 in Grey FEAD6 1SNA199435R1400 20 1.80
3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
3 4 Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163071S0201 - Rev. A

Technical data valid for copper conductors only.
