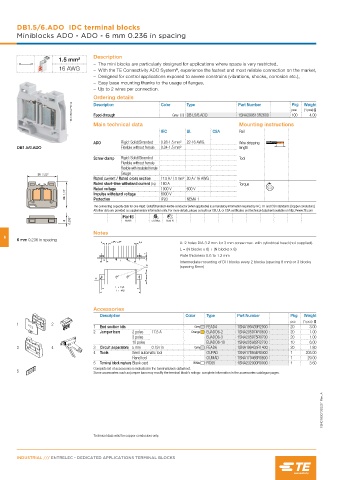

Page 440 - Entrelec Terminal Blocks Master Catalog

DB1.5/6.ADO IDC terminal blocks
Miniblocks ADO - ADO - 6 mm 0.236 in spacing

Description
1.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
16 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Easy base mounting thanks to the usage of flanges,
– Up to 2 wires per connection.
Ordering details Color Type Part Number Pkg Weight
1SNC163142F0014 Feed-through Grey DB1.5/6.ADO 1SNA299513R2600 pce (1 pce) g
Description
4.00
100
Main technical data Mounting instructions
IEC UL CSA Rail

ADO Rigid: Solid/Stranded 0.28-1.5 mm² 22-16 AWG Wire stripping
DB1.5/6.ADO Flexible without ferrule 0.34-1.5 mm² length
Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
31 1.22" Gauge
Rated current / Rated cross section 17.5 A / 1.5 mm² 20 A / 16 AWG
Rated short-time withstand current (1s) 180 A Torque
Rated voltage 1000 V 600 V
28 1.10" Impulse withstand voltage 8000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid: Solid/Stranded Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
US
C
6 0.238" RoHS cCSAus Gost R
Notes
6
6 mm 0.236 in spacing
/ A: 2 holes DIA 3.2 mm for 3 mm screw max. with cylindrical head (not supplied).
L = (N blocks x 6) + (N blocks x 8)
Plate thickness 0.6 to 1.2 mm
Intermediate mounting of DH blocks every 2 blocks (spacing 8 mm) or 3 blocks
B
(spacing 6mm)
A

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End section kits Grey FEAD4 1SNA199439R2000 20 3.00
2 Jumper bars 2 poles 17.5 A Orange BJADO6-2 1SNA205974R0600 20 1.00
3 poles BJADO6-3 1SNA205975R0700 20 1.00
10 poles BJADO6-10 1SNA205982R2700 10 6.00
3 4 3 Circuit separators 5 mm 0.197 in Grey FEAD6 1SNA199435R1400 20 1.80
4 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
5 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163070S0201 Rev. A

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
