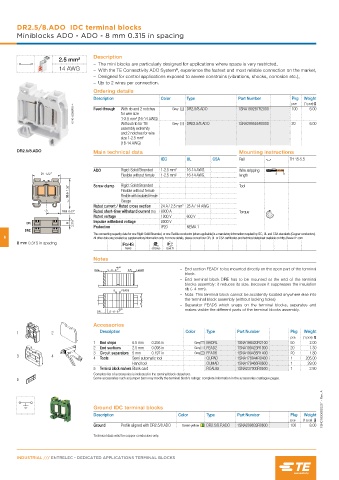

Page 438 - Entrelec Terminal Blocks Master Catalog

DR2.5/8.ADO IDC terminal blocks
Miniblocks ADO - ADO - 8 mm 0.315 in spacing

Description
2.5 mm²
– The mini blocks are particularly designed for applications where space is very restricted,
14 AWG – With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
®
– Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.),
– Up to 2 wires per connection.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1SNC163089F0014 for wire size
With rib and 2 notches
Feed-through
100
6.00
1SNA199287R2000
Grey
DR2.5/8.ADO
1-2.5 mm (16-14 AWG)
2
Without rib for TB
assembly extremity Grey DRE2.5/8.ADO 1SNA299555R0000 20 6.00
and 2 notches for wire
size 1-2.5 mm 2
(16-14 AWG)
DR2.5/8.ADO Main technical data Mounting instructions
IEC UL CSA Rail TH 15-5.5
ADO Rigid: Solid/Stranded 1-2.5 mm² 16-14 AWG Wire stripping
31 1.22"
Flexible without ferrule 1-2.5 mm² 16-14 AWG length
33.5 1.32" Screw clamp Rigid: Solid/Stranded Tool
Flexible without ferrule
Flexible with insulated ferrule
Gauge
Rated current / Rated cross section 24 A / 2.5 mm² 25 A / 14 AWG
15.5 0.61" Rated short-time withstand current (1s) 8000 A Torque
Rated voltage 1000 V 600 V
0.315" 8 Impulse withstand voltage 8000 V
DR Protection IP20 NEMA 1
DRE
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
6 All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
8 mm 0.315 in spacing
C US
RoHS cCSAus Gost R
Notes
– End section FEAD1 to be mounted directly on the open part of the terminal
DRE... 5 - 6 - 8 FEAD2
block.
– End terminal block DRE has to be mounted at the end of the terminal
blocks assembly: it reduces its size, because it suppresses the insulation
rib (- 4 mm).
FEAD6
– Nota: This terminal block cannot be accidently located anywhere else into
the terminal block assembly (without locking holes)
– Separator FEAD5 which snaps on the terminal blocks, separates and
makes visible the different parts of the terminal blocks assembly.
DR... 5 - 6 - 8
Accessories
1 2 Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 End stops 6.5 mm 0.256 in Grey BADRL 1SNA199420R2100 50 2.00
2 End sections 2.5 mm 0.098 in Grey FEAD2 1SNA199423R1000 20 1.30
3 Circuit separators 5 mm 0.197 in Grey FEAD6 1SNA199435R1400 20 1.80
3 4
4 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
5 Terminal block markers Blank card RCAL85 1SNA237000R0500 1 2.90
Complete list of accessories is indicated in the terminal block datasheet.
5 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC163068S0201 - Rev. A

Ground IDC terminal blocks
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Ground Profile aligned with DR2.5/8.ADO Green-yellow DR2.5/8.P.ADO 1SNA299633R0600 100 8.00
Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - DEDICATED APPLICATIONS TERMINAL BLOCKS
