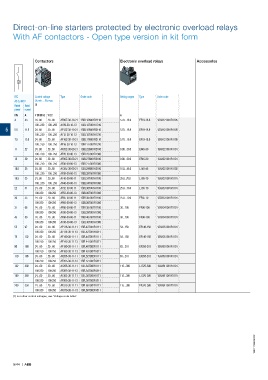

Direct-on-line starters protected by electronic overload relays

With AF contactors - Open type version in kit form

Contactors Electronic overload relays Accessories

IEC Control voltage Type Order code Setting ranges Type Order code
AC-3, 400 V Uc min. ... Uc max.
Rated Rated (1)
power current
kW A V 50/60 Hz V DC A
4 8.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 5.70…18.9 EF19-18.9 1SAX121001R1105
100...250 100...250 AF09-30-10-13 1SBL137001R1310
5 5.5 11.5 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 5.70…18.9 EF19-18.9 1SAX121001R1105
100...250 100...250 AF12-30-10-13 1SBL157001R1310
7.5 15.5 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 5.70…18.9 EF19-18.9 1SAX121001R1105
100...250 100...250 AF16-30-10-13 1SBL177001R1310
11 22 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 9.00…30.0 EF45-30 1SAX221001R1101
100...250 100...250 AF26-30-00-13 1SBL237001R1300
15 29 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 9.00…30.0 EF45-30 1SAX221001R1101
100...250 100...250 AF30-30-00-13 1SBL277001R1300
18.5 35 24...60 20...60 AF38Z-30-00-21 1SBL296001R2100 15.0…45.0 EF45-45 1SAX221001R1102
100...250 100...250 AF38-30-00-13 1SBL297001R1300
18.5 35 24...60 20...60 AF40-30-00-11 1SBL347001R1100 25.0...70.0 EF65-70 1SAX331001R1101
100...250 100...250 AF40-30-00-13 1SBL347001R1300
22 41 24…60 20…60 AF52-30-00-11 1SBL367001R1100 25.0…70.0 EF65-70 1SAX331001R1101
100-250 100-250 AF52-30-00-13 1SBL367001R1300
30 55 24…60 20…60 AF65-30-00-11 1SBL387001R1100 25.0…70.0 EF65-70 1SAX331001R1101
100-250 100-250 AF65-30-00-13 1SBL387001R1300
37 66 24…60 20…60 AF80-30-00-11 1SBL397001R1100 36…100 EF96-100 1SAX341001R1101
100-250 100-250 AF80-30-00-13 1SBL397001R1300
45 80 24…60 20…60 AF96-30-00-11 1SBL407001R1100 36…100 EF96-100 1SAX341001R1101
100-250 100-250 AF96-30-00-13 1SBL407001R1300
55 97 24…60 20…60 AF116-30-11-11 1SFL427001R1111 54…150 EF146-150 1SAX351001R1101
100-250 100-250 AF116-30-11-13 1SFL427001R1311
75 132 24…60 20…60 AF140-30-11-11 1SFL447001R1111 54…150 EF146-150 1SAX351001R1101
100-250 100-250 AF140-30-11-13 1SFL447001R1311
90 160 24…60 20…60 AF190-30-11-11 1SFL487002R1111 63…210 EF205-210 1SAX531001R1101
100-250 100-250 AF190-30-11-13 1SFL487002R1311
110 195 24…60 20…60 AF205-30-11-11 1SFL527002R1111 63…210 EF205-210 1SAX531001R1101
100-250 100-250 AF205-30-11-13 1SFL527002R1311
132 230 24…60 20…60 AF265-30-11-11 1SFL547002R1111 115…380 EF370-380 1SAX611001R1101
100-250 100-250 AF265-30-11-13 1SFL547002R1311
160 280 24…60 20…60 AF305-30-11-11 1SFL587002R1111 115…380 EF370-380 1SAX611001R1101
100-250 100-250 AF305-30-11-13 1SFL587002R1311
200 350 24…60 20…60 AF370-30-11-11 1SFL607002R1111 115…380 EF370-380 1SAX611001R1101
100-250 100-250 AF370-30-11-13 1SFL607002R1311
(1) For other control voltages, see "Voltage code table".

1SBC101948S0201
