P. 249

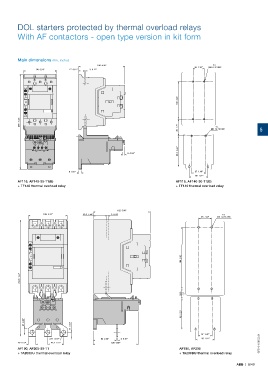

DOL starters protected by thermal overload relays
With AF contactors - open type version in kit form
Main dimensions mm, inches
126 4.96" 4 x
30 1.18" M4 8-32 UNC
90 3.54" 17 0.67" 3 0.12"
100 3.94"
259 10.20"
45 1.77" M5 10-24 UNC 5
4 x
82.3 3.24"
6 0.24"
8 0.31" 37 1.46"
50 1.97"
AF116, AF140-30-11(B) AF116, AF140-30-11(B)
+ TF140 thermal overload relay + TF140 thermal overload relay
152 5.98"
105 4.13" 35.5 1.40" 5 0.20" 8 x
35 1.39" M5 10-24 UNC
165 6.50"
312.5 12.3"
25.5 1.0"
82 3.23"
21 0.83" 11 0.43"
37 1.46"
ΓΈ 11 0.43" 62 2.44" 4 0.16" 50 1.97"
20 0.79" 42.5 1.67" 126 4.96" 1SFC101156C0201
AF190, AF205-30-11 AF190, AF205
+ TA200DU thermal overload relay + TA200DU thermal overload relay
ABB | 5/49
