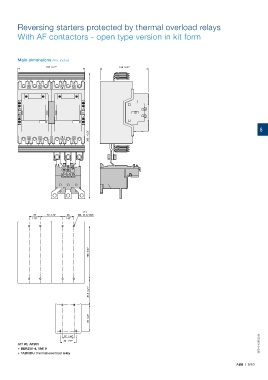

Reversing starters protected by thermal overload relays

With AF contactors - open type version in kit form

Main dimensions mm, inches
210 8.27" 152 5.98"

5
395 15.55"

12 X
35 70 2.76" 35 M5 10-24 UNC
1.38" 1.38"

165 6.50"

81.5 3.21"

82 3.23"

37 1.46"
50 1.97"
AF190, AF205 1SFC101159C0201
+ BER205-4, VM19
+ TA200DU thermal overload relay
