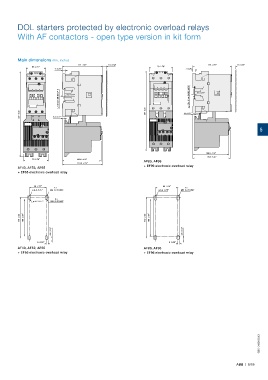

DOL starters protected by electronic overload relays

With AF contactors - open type version in kit form

Main dimensions mm, inches
111 4.37" 10 0.39" 116 4.57" 10 0.39"
55 2.17" 70 2.76"
7 0.28" 7 0.28"

35 mm EN/IEC 60715 5.5 0.22" 35 x 15 mm EN/IEC 60715 5.5 0.22"

237 9.33" 5.4 0.21" 237 9.33" 5.4 0.21"

5

106.8 4.20"
110.6 4.35"
70 2.76" 106.8 4.20"
110.6 4.35" AF80, AF96
AF40, AF52, AF65 + EF96 electronic overload relay
+ EF65 electronic overload relay

45 1.77" 60 2.36"
2 x 2 x
ø 6.4 0.25" M6 ¼-20 UNC ø 6.4 0.25" M6 ¼-20 UNC
2 x
ø 4.2 0.17" M4 8-32 UNC

110 4.33" 100 3.94" 110 4.33" 100 3.94"

4.6 0.18" 4.6 0.18"

5 0.20" 5 0.20"
AF40, AF52, AF65 AF80, AF96
+ EF65 electronic overload relay + EF96 electronic overload relay

1SBC101951S0201

ABB | 5/55
