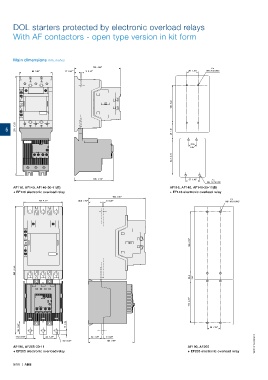

DOL starters protected by electronic overload relays

With AF contactors - open type version in kit form

Main dimensions mm, inches
126 4.96"
6 x
90 3.54" 17 0.67" 3 0.12" 30 1.18" M4 8-32 UNC

100 3.94"

270 10.63"
5 46 1.81"

21.5
0.85"
94.7 3.73"

105 4.13" 37 1.46" 2 x
M5 10-24 UNC
AF116, AF140, AF146-30-11(B) AF116, AF140, AF146-30-11(B)
+ EF146 electronic overload relay + EF146 electronic overload relay
152 5.98"
8 x
105 4.13" 35.5 1.40" 5 0.20" M5 10-24 UNC

165 6.50"

342 13.46"

20.5 0.81"

112 4.42"

35 1.38" 10 0.39" 35 1.39"

17.5 0.69" 35 1.38" 35 1.38" 5 0.20"
8.5 0.33" 123 4.84"
AF190, AF205-30-11 AF190, AF205 1SFC101161C0201
+ EF205 electronic overload relay + EF205 electronic overload relay

5/56 | ABB
