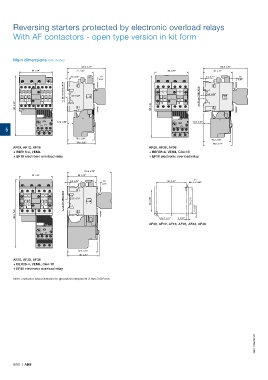

Reversing starters protected by electronic overload relays

With AF contactors - open type version in kit form

Main dimensions mm, inches
102.5 4.04" 119.5 4.70"
90 3.54" 71 2.80" 90 3.54" 80 3.15"
5.5 0.22" 10 5.5 0.22" 10
0.39" 0.39"
35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22"

163 6.42" 166 6.54"

17.4 0.69" 20.4 0.80"
5

73.3 2.89"
76.3 3.00"
76.8 3.02"
79.8 3.14"
AF09, AF12, AF16 AF26, AF30, AF38
+ BER16-4, VEM4 + BER38-4, VEM4, CA4-10
+ EF19 electronic overload relay + EF19 electronic overload relay

119.5 4.70" 102.5 4.04"
90 3.54" 90 3.54" 80 3.15" 71 2.80"
2 x
5.5 0.22" 10 5.5 0.22" 10 80 3.15" M4 8-32 UNC
0.39" 0.39"
35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"

183.5 7.22" 166.5 6.56" ø 4.2 0.17" 5 0.20" 5 0.20"

6.2
0.24" AF09, AF12, AF16, AF26, AF30, AF38

72.7 2.86"
76.8 3.02"
82.5 3.25"
86 3.39"
AF26, AF30, AF38
+ BER38-4, VEM4, CA4-10
+ EF45 electronic overload relay

Note: contactor lateral distance to grounded component 2 mm 0.08" min.

1SBC101952S0201

5/58 | ABB
