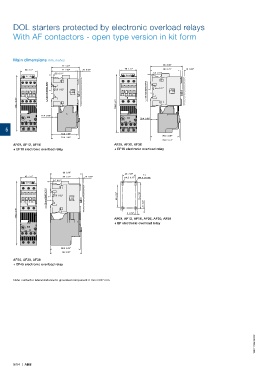

DOL starters protected by electronic overload relays

With AF contactors - open type version in kit form

Main dimensions mm, inches
77 3.03" 86 3.39"
45 1.77" 80 3.15" 10 0.39"
45 1.77" 71 2.80" 10 0.39"
5.5 0.22" 5.5 0.22"
35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22"

152.4 6.00" 155.2 6.11"

17.4 0.69"
20.4 0.80"
5
73.3 2.89"
76.3 3.00"
76.8 3.02"
79.8 3.14"
AF09, AF12, AF16 AF26, AF30, AF38
+ EF19 electronic overload relay + EF19 electronic overload relay

86 3.39"
86 3.39"
45 1.77" 80 3.15" 10 35 1.38" 2 x
45 1.77" 80 3.15" 10 0.39" 0.39"
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
5.5 0.22"
35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76" 5 0.20"

172.3 6.78" 158.9 6.26" 5 0.20"
9.2
0.36" AF09, AF12, AF16, AF26, AF30, AF38
+ EF electronic overload relay

75.7 2.98"
79.8 3.14"
82.5 3.25"
86 3.39"
AF26, AF30, AF38
+ EF45 electronic overload relay

Note: contactor lateral distance to grounded component 2 mm 0.08" min.

1SBC101950S0201

5/54 | ABB
