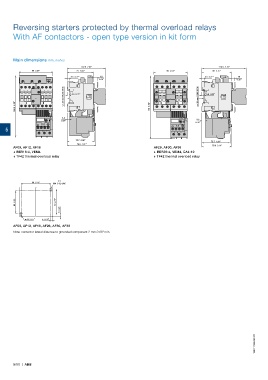

Reversing starters protected by thermal overload relays

With AF contactors - open type version in kit form

Main dimensions mm, inches
102.5 4.04" 119.5 4.70"
90 3.54" 71 2.80" 90 3.54" 80 3.15"
2 x 80 3.15" 2 x
5.5 0.22" 10 80 3.15" M4 8-32 UNC 5.5 0.22" 10
0.39" 0.39" M4 8-32 UNC
35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"

166.5 6.56" 170 6.69" 5 0.20" 5 0.20"

ø 4.2 0.17" 5 0.20" ø 4.2 0.17" 5 0.20"
6.2
0.24" 9.2
0.36"
5

72.7 2.86"
75.7 2.98"
76.8 3.02" 79.8 3.14"
AF09, AF12, AF16 AF26, AF30, AF38
+ BER16-4, VEM4 + BER38-4, VEM4, CA4-10
+ TF42 thermal overload relay + TF42 thermal overload relay

102.5 4.04"
90 3.54" 71 2.80"
2 x
5.5 0.22" 10 80 3.15" M4 8-32 UNC
0.39"
35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"

166.5 6.56" 5 0.20"

ø 4.2 0.17" 5 0.20"
6.2
0.24" AF09, AF12, AF16, AF26, AF30, AF38
Note: contactor lateral distance to grounded component 2 mm 0.08" min.

72.7 2.86"
76.8 3.02"
