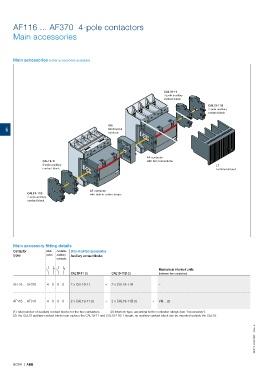

AF116 ... AF370 4-pole contactors

Main accessories

Main accessories (other accessories available)

CAL19-11
2-pole auxiliary
contact block
CAL19-11B
2-pole auxiliary
contact block

VM
5 Mechanical
interlock

AF contactor
CAL19-11 with bar connections
2-pole auxiliary LT
contact block Terminal shroud

AF contactor
CAL19-11B with built-in cable clamps
2-pole auxiliary
contact block

Main accessory fitting details
Contactor Main Available Side-mounted accessories
types poles auxiliary Auxiliary contact blocks
contacts

Mechanical interlock units
CAL19-11 (3) CAL19-11B (3) (between two contactors)

AF116 ... AF370 4 0 0 0 2 x CAL19-11 + 2 x CAL19-11B –

AF116 ... AF370 4 0 0 0 2 x CAL19-11 (1) + 2 x CAL19-11B (1) + VM... (2)

(1) Total number of auxiliary contact blocks for the two contactors. (2) Interlock type, according to the contactor ratings (see "Accessories").
(3) The CEL19 auxiliary contact blocks can replace the CAL19-11 and CAL19-11B. Though, no auxiliary contact block can be mounted outside the CEL19.
