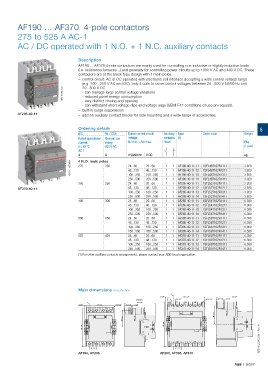

AF190 … AF370 4-pole contactors

275 to 525 A AC-1
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts

Description
AF190 ... AF370 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads
(i.e. resistance furnaces...) and generally for controlling power circuits up to 1000 V AC and 440 V DC. These
contactors are of the block type design with 4 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
1SFC101155V0001 - can manage large control voltage variations
20...500 V DC
- reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
AF205-40-11 – add-on auxiliary contact blocks for side mounting and a wide range of accessories.

Ordering details 5
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts (1)
current rating Uc min. ... Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
A
A 4 N.O. main poles V 50/60 Hz V DC kg
1SFC101195V0001 275 230 24...60 20...60 1 1 1 1 AF190-40-11-11 1SFL487102R1111 3.920

48...130
48...130
3.920
1SFL487102R1211
AF190-40-11-12
100...250
1SFL487102R1411
3.920
AF190-40-11-14
250...500 100...250 1 1 1 1 AF190-40-11-13 1SFL487102R1311 3.920
250...500
350 250 24...60 20...60 1 1 AF205-40-11-11 1SFL527102R1111 3.920
AF370-40-11 48...130 48...130 1 1 AF205-40-11-12 1SFL527102R1211 3.920
100...250 100...250 1 1 AF205-40-11-13 1SFL527102R1311 3.920
250...500 250...500 1 1 AF205-40-11-14 1SFL527102R1411 3.920
400 300 24...60 20...60 1 1 AF265-40-11-11 1SFL547102R1111 6.380
48...130 48...130 1 1 AF265-40-11-12 1SFL547102R1211 6.380
100...250 100...250 1 1 AF265-40-11-13 1SFL547102R1311 6.380
250...500 250...500 1 1 AF265-40-11-14 1SFL547102R1411 6.380
500 350 24...60 20...60 1 1 AF305-40-11-11 1SFL587102R1111 6.380
48...130 48...130 1 1 AF305-40-11-12 1SFL587102R1211 6.380
100...250 100...250 1 1 AF305-40-11-13 1SFL587102R1311 6.380
250...500 250...500 1 1 AF305-40-11-14 1SFL587102R1411 6.380
525 420 24...60 20...60 1 1 AF370-40-11-11 1SFL607102R1111 6.380
48...130 48...130 1 1 AF370-40-11-12 1SFL607102R1211 6.380
100...250 100...250 1 1 AF370-40-11-13 1SFL607102R1311 6.380
250...500 250...500 1 1 AF370-40-11-14 1SFL607102R1411 6.380
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.

Main dimensions mm, inches
A
10 0.39" 183.75 7.23" 180 7.09"
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
SECTION A-A
A 152.5 6.00"
10 0.39" 140 5.51" ø 8.5 0.33" 35.5 1.40" 5 0.20"
94.7 3.73" 33.4 1.31"
83.5 3.29" 29.5 1.16"
225 8.86"
1SFC101200C0201 - Rev. A
196 7.72"

35 1.38" 43.75 1.72"
AF190, AF205 AF265, AF305, AF370
