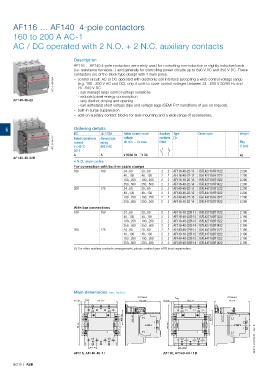

AF116 … AF140 4-pole contactors

160 to 200 A AC-1
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

Description
AF116 ... AF140 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads
(i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 350 V DC. These
contactors are of the block type design with 4 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
1SFC101159V0001 (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
AF140-40-22 - very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.

5 Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
1SFC101194V0001 Rated operational General use Uc min. ... Uc max. fitted Pkg
contacts (1)
voltage
rating
current
(1 pce)
600 V AC
θ ≤ 40 °C
A AC-1 A V 50/60 Hz V DC kg
AF140-40-22B
4 N.O. main poles
For connection with built-in cable clamps
160 160 24...60 20...60 2 2 AF116-40-22-11 1SFL427101R1122 2.290
48...130 48...130 2 2 AF116-40-22-12 1SFL427101R1222 2.290
100...250 100...250 2 2 AF116-40-22-13 1SFL427101R1322 2.290
250...500 250...500 2 2 AF116-40-22-14 1SFL427101R1422 2.290
200 175 24...60 20...60 2 2 AF140-40-22-11 1SFL447101R1122 2.290
48...130 48...130 2 2 AF140-40-22-12 1SFL447101R1222 2.290
100...250 100...250 2 2 AF140-40-22-13 1SFL447101R1322 2.290
250...500 250...500 2 2 AF140-40-22-14 1SFL447101R1422 2.290
With bar connections
160 160 24...60 20...60 2 2 AF116-40-22B-11 1SFL427102R1122 2.190
48...130 48...130 2 2 AF116-40-22B-12 1SFL427102R1222 2.190
100...250 100...250 2 2 AF116-40-22B-13 1SFL427102R1322 2.190
250...500 250...500 2 2 AF116-40-22B-14 1SFL427102R1422 2.190
200 175 24...60 20...60 2 2 AF140-40-22B-11 1SFL447102R1122 2.190
48...130 48...130 2 2 AF140-40-22B-12 1SFL447102R1222 2.190
100...250 100...250 2 2 AF140-40-22B-13 1SFL447102R1322 2.190
250...500 250...500 2 2 AF140-40-22B-14 1SFL447102R1422 2.190
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.

Main dimensions mm, inches
SECTION A A SECTION
SECTION A-AA-A
SECTION A-AA-A
A A
120 4.72"
128 5.04"
10 0.39" 10 0.39" 120 4.72" 120 4.72" 128 5.04" 10 0.39" 10 0.39" 120 4.72" 128 5.04" 128 5.04"
55.5 0.22" 55.5 0.22" 19.5 4.96" 19.5 4.96" 55.5 2.18" 55.5 2.18" 19.5 0.77" 19.5 0.77"
150 5.91" 150 5.91" 150 5.91" 150 5.91"
1SFC101201C0201 - Rev. B

30 1.18" 30 1.18" 30 1.18" 30 1.18"
AF116, AF140-40-11 AF116, AF140-40-11B

5/210 | ABB
