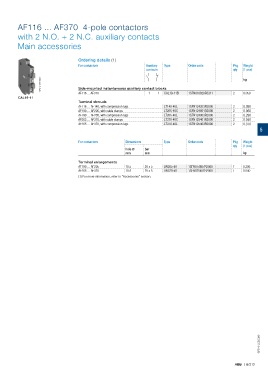

Page 413 - Motor_protection_and_control_Manual_motor_starters_ contactors

AF116 ... AF370 4-pole contactors

with 2 N.O. + 2 N.C. auxiliary contacts
Main accessories

Ordering details (1)
For contactors Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)

1SFC101071V0001 Side-mounted instantaneous auxiliary contact blocks kg

AF116 ... AF370 1 1 CAL19-11B 1SFN010820R3311 2 0.050
CAL19-11
Terminal shrouds
AF116 … AF140, with compression lugs LT140-40L 1SFN124203R2000 2 0.090
AF190 … AF205, with cable clamps LT205-40C 1SFN124801R2000 2 0.060
AF190 … AF205, with compression lugs LT205-40L 1SFN124803R2000 2 0.290
AF265 … AF370, with cable clamps LT370-40C 1SFN125401R2000 2 0.040
AF265 … AF370, with compression lugs LT370-40L 1SFN125403R2000 2 0.370
5

For contactors Dimensions Type Order code Pkg Weight
qty (1 pce)
hole Ø bar
mm mm kg
Terminal enlargements
AF190 … AF205 10.5 20 x 5 LW205-40 1SFN074807R2000 1 0.306
AF265 … AF370 10.5 25 x 5 LW370-40 1SFN075407R2000 1 0.540
(1) For more information, refer to "Accessories" section.

1SFC101208C0201

ABB | 5/213
