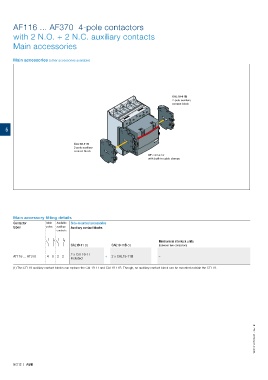

AF116 ... AF370 4-pole contactors

with 2 N.O. + 2 N.C. auxiliary contacts
Main accessories

Main accessories (other accessories available)

CAL19-11B
2-pole auxiliary
contact block

5

CAL19-11B
2-pole auxiliary
contact block
AF contactor
with built-in cable clamps

Main accessory fitting details
Contactor Main Available Side-mounted accessories
types poles auxiliary Auxiliary contact blocks
contacts

Mechanical interlock units
CAL19-11 (1) CAL19-11B (1) (between two contactors)

2 x CAL19-11
AF116 ... AF370 4 0 2 2 + 2 x CAL19-11B –
included
(1) The CEL19 auxiliary contact blocks can replace the CAL19-11 and CAL19-11B. Though, no auxiliary contact block can be mounted outside the CEL19.
