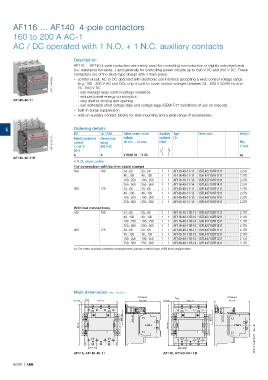

AF116 … AF140 4-pole contactors

160 to 200 A AC-1
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts

Description
AF116 ... AF140 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads
(i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 350 V DC. These
contactors are of the block type design with 4 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
1SFC101154V0001 (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
AF140-40-11 - very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.

5 Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
1SFC101192V0001 Rated operational General use Uc min. ... Uc max. fitted Pkg
contacts (1)
voltage
rating
current
(1 pce)
600 V AC
θ ≤ 40 °C
A AC-1 A V 50/60 Hz V DC kg
AF140-40-11B
4 N.O. main poles
For connection with built-in cable clamps
160 160 24...60 20...60 1 1 AF116-40-11-11 1SFL427101R1111 2.270
48...130 48...130 1 1 AF116-40-11-12 1SFL427101R1211 2.270
100...250 100...250 1 1 AF116-40-11-13 1SFL427101R1311 2.270
250...500 250...500 1 1 AF116-40-11-14 1SFL427101R1411 2.270
200 175 24...60 20...60 1 1 AF140-40-11-11 1SFL447101R1111 2.270
48...130 48...130 1 1 AF140-40-11-12 1SFL447101R1211 2.270
100...250 100...250 1 1 AF140-40-11-13 1SFL447101R1311 2.270
250...500 250...500 1 1 AF140-40-11-14 1SFL447101R1411 2.270
With bar connections
160 160 24...60 20...60 1 1 AF116-40-11B-11 1SFL427102R1111 2.170
48...130 48...130 1 1 AF116-40-11B-12 1SFL427102R1211 2.170
100...250 100...250 1 1 AF116-40-11B-13 1SFL427102R1311 2.170
250...500 250...500 1 1 AF116-40-11B-14 1SFL427102R1411 2.170
200 175 24...60 20...60 1 1 AF140-40-11B-11 1SFL447102R1111 2.170
48...130 48...130 1 1 AF140-40-11B-12 1SFL447102R1211 2.170
100...250 100...250 1 1 AF140-40-11B-13 1SFL447102R1311 2.170
250...500 250...500 1 1 AF140-40-11B-14 1SFL447102R1411 2.170
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.

Main dimensions mm, inches
SECTION A A SECTION
SECTION A-AA-A
SECTION A-AA-A
A A
120 4.72"
128 5.04"
10 0.39" 10 0.39" 120 4.72" 120 4.72" 128 5.04" 10 0.39" 10 0.39" 120 4.72" 128 5.04" 128 5.04"
55.5 0.22" 55.5 0.22" 19.5 4.96" 19.5 4.96" 55.5 2.18" 55.5 2.18" 19.5 0.77" 19.5 0.77"
150 5.91" 150 5.91" 150 5.91" 150 5.91"
1SFC101199C0201 - Rev. B

30 1.18" 30 1.18" 30 1.18" 30 1.18"
AF116, AF140-40-11 AF116, AF140-40-11B
