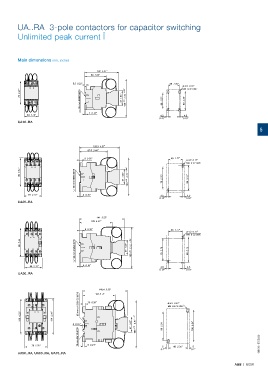

UA..RA 3-pole contactors for capacitor switching

Unlimited peak current Î

Main dimensions mm, inches

107 4.21"
68 2.68"

5.5 0.22" 35 1.38"
ø 4.5 0.18"
M4 8-32 UNC
74 2.91" +.394"
35 mm EN/IEC 60715 47 1.85" +10 120 4.72" 50 1.97" 60 2.36"

4 0.16"
44 1.73" 4.5 4.5
0.18" 0.18"
UA16..RA
5

126.3 4.97"
87.3 3.44"

9 0.35" 45 1.77"
ø 4.2 0.17"
M4 8-32 UNC
90 3.54"
35 mm EN/IEC 60715 47 1.85" +10 120 4.72" +.394" 70 2.76" 80 3.15"

54 2.13" 4 0.16" 4.5 4.5
0.18" 0.18"
UA26..RA

141 5.55"
102 4.02"
9 0.35" 45 1.77"
ø 4.2 0.17"
M4 8-32 UNC
90 3.54"
35 mm EN/IEC 60715 47 1.85" +10 130 5.12" +.394" 70 2.76" 80 3.15"

54 2.13" 4 0.16" 4.5 4.5
0.18" 0.18"
UA30..RA

140.4 5.53"
35 mm x 15 EN/IEC 60715 10 0.39" ø 6.2 0.24"
101.5 4"
M6 1/4-20 UNC
110 4.33" 114 4.49" +10"

4 0.16" 47 1.85" +10 150 5.91" 90 3.54" 100 3.94"
75 mm EN/IEC 60715

70 2.76" 6 0.24" 1SBC101575S0201
5 60 2.36" 5
0.2" 0.2"
UA50..RA, UA63..RA, UA75..RA
