P. 492

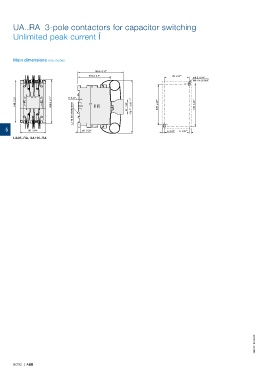

UA..RA 3-pole contactors for capacitor switching
Unlimited peak current Î
Main dimensions mm, inches
155.6 6.13"
114.4 4.5" 78 3.07"
ø 6.2 0.24"
M6 1/4-20 UNC
148 5.83" 155.3 6.11" 6 0.24" 47 1.85" +10" 126 4.96" 136 5.35"
75 mm EN/IEC 60715 +10 170 6.69"
5 90 3.54" 10 0.39" 6 0.24" 6 0.24"
UA95..RA, UA110..RA
1SBC101575S0201
5/292 | ABB
