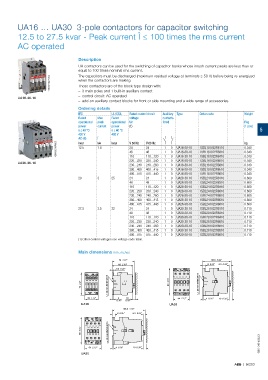

UA16 … UA30 3-pole contactors for capacitor switching

12.5 to 27.5 kvar - Peak current Î ≤ 100 times the rms current
AC operated

Description
UA contactors can be used for the switching of capacitor banks whose inrush current peaks are less than or
equal to 100 times nominal rms current.
The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized
1SBC591694F0304 when the contactors are making.
These contactors are of the block type design with:
– 3 main poles and 1 built-in auxiliary contact
– control circuit: AC operated
UA16-30-10
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated Max Rated voltage contacts
operational peak operational Uc fitted Pkg
power current power (1) (1 pce)
θ ≤ 40 °C θ ≤ 40 °C 5
400 V 480 V
AC-6b Î kA kvar V 50 Hz V 60 Hz kg
1SBC580093F0303 12.5 1.8 - 24 24 1 1 0 0 UA16-30-10 1SBL181022R8110 0.340
kvar
48
48
1SBL181022R8310
0.340
UA16-30-10
110
220…230 110…120 1 1 0 0 UA16-30-10 1SBL181022R8410 0.340
UA16-30-10
230…240
1SBL181022R8010
0.340
UA30-30-10
230…240 240…260 1 0 UA16-30-10 1SBL181022R8810 0.340
380…400 400…415 1 0 UA16-30-10 1SBL181022R8510 0.340
400…415 415…440 1 0 UA16-30-10 1SBL181022R8610 0.340
20 3 25 24 24 1 0 UA26-30-10 1SBL241022R8110 0.600
48 48 1 0 UA26-30-10 1SBL241022R8310 0.600
110 110…120 1 0 UA26-30-10 1SBL241022R8410 0.600
220…230 230…240 1 0 UA26-30-10 1SBL241022R8010 0.600
230…240 240…260 1 0 UA26-30-10 1SBL241022R8810 0.600
380…400 400…415 1 0 UA26-30-10 1SBL241022R8510 0.600
400…415 415…440 1 0 UA26-30-10 1SBL241022R8610 0.600
27.5 3.5 32 24 24 1 0 UA30-30-10 1SBL281022R8110 0.710
48 48 1 0 UA30-30-10 1SBL281022R8310 0.710
110 110…120 1 0 UA30-30-10 1SBL281022R8410 0.710
220…230 230…240 1 0 UA30-30-10 1SBL281022R8010 0.710
230…240 240…260 1 0 UA30-30-10 1SBL281022R8810 0.710
380…400 400…415 1 0 UA30-30-10 1SBL281022R8510 0.710
400…415 415…440 1 0 UA30-30-10 1SBL281022R8610 0.710
(1) Other control voltages see voltage code table.
Main dimensions mm, inches
74 2.91" 93.6 3.69"
68 2.68" 9 0.35" 6.3 0.25"
5.5 0.22"

74 2.91" 35 mm EN/IEC 60715 90 3.54" 35 mm EN/IEC 60715

44 1.73" 4 10 54 2.13" 4 0.16" 10 0.39"
0.16" 0.39"
UA16 UA26
108.3 4.26"
9 0.35" 6.3 0.25"

90 3.54" 35 mm EN/IEC 60715

54 2.13" 4 0.16" 10 0.39" 1SBC101514S0201
UA30

ABB | 5/293
