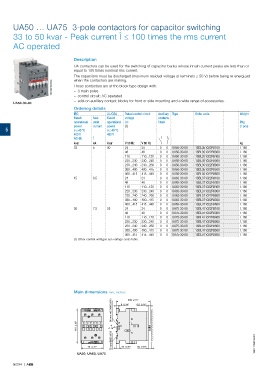

UA50 … UA75 3-pole contactors for capacitor switching

33 to 50 kvar - Peak current Î ≤ 100 times the rms current
AC operated

Description
UA contactors can be used for the switching of capacitor banks whose inrush current peaks are less than or
equal to 100 times nominal rms current.
The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized
when the contactors are making.
1SBC580783F0303 These contactors are of the block type design with:
– 3 main poles
– control circuit: AC operated
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
UA50-30-00
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated Max Rated voltage contacts
operational peak operational Uc fitted Pkg
power current power (1) (1 pce)
5 θ ≤ 40 °C θ ≤ 40 °C
400 V 480 V
AC-6b Î
kvar kA kvar V 50 Hz V 60 Hz kg
33 5 40 24 24 0 0 UA50-30-00 1SBL351022R8100 1.160
48 48 0 0 UA50-30-00 1SBL351022R8300 1.160
110 110…120 0 0 UA50-30-00 1SBL351022R8400 1.160
220…230 230…240 0 0 UA50-30-00 1SBL351022R8000 1.160
230…240 240…260 0 0 UA50-30-00 1SBL351022R8800 1.160
380…400 400…415 0 0 UA50-30-00 1SBL351022R8500 1.160
400…415 415…440 0 0 UA50-30-00 1SBL351022R8600 1.160
45 6.5 - 24 24 0 0 UA63-30-00 1SBL371022R8100 1.160
48 48 0 0 UA63-30-00 1SBL371022R8300 1.160
110 110…120 0 0 UA63-30-00 1SBL371022R8400 1.160
220…230 230…240 0 0 UA63-30-00 1SBL371022R8000 1.160
230…240 240…260 0 0 UA63-30-00 1SBL371022R8800 1.160
380…400 400…415 0 0 UA63-30-00 1SBL371022R8500 1.160
400…415 415…440 0 0 UA63-30-00 1SBL371022R8600 1.160
50 7.5 55 24 24 0 0 UA75-30-00 1SBL411022R8100 1.160
48 48 0 0 UA75-30-00 1SBL411022R8300 1.160
110 110…120 0 0 UA75-30-00 1SBL411022R8400 1.160
220…230 230…240 0 0 UA75-30-00 1SBL411022R8000 1.160
230…240 240…260 0 0 UA75-30-00 1SBL411022R8800 1.160
380…400 400…415 0 0 UA75-30-00 1SBL411022R8500 1.160
400…415 415…440 0 0 UA75-30-00 1SBL411022R8600 1.160
(1) Other control voltages see voltage code table.

Main dimensions mm, inches 108 4.25"

35 mm x15 EN/IEC 60715 6 0.24" 6.5 0.26"

110 4.33" 0.16"
4
75 mm EN/IEC 60715

70 2.76" 10 0.39" 10 0.39" 1SBC101521S0201
UA50, UA63, UA75

5/294 | ABB
