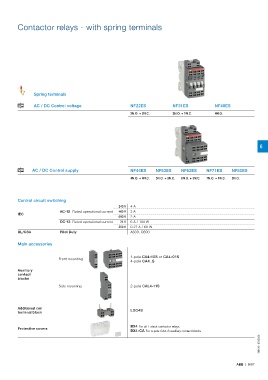

Page 691 - Motor_protection_and_control_Manual_motor_starters_ contactors

Contactor relays - with spring terminals

Spring terminals

AC / DC Control voltage NF22ES NF31ES NF40ES
2N.O. + 2N.C. 3N.O. + 1N.C. 4N.O.

6

AC / DC Control supply NF44ES NF53ES NF62ES NF71ES NF80ES

4N.O. + 4N.C. 5N.O. + 3N.C. 6N.O. + 2N.C. 7N.O. + 1N.C. 8N.O.

Control circuit switching
240 V 4 A
AC-15 Rated operational current 400 V 3 A
IEC
690 V 2 A
DC-13 Rated operational current 24 V 6 A / 144 W
250 V 0.27 A / 68 W
UL/CSA Pilot Duty A600, Q600

Main accessories

1-pole CA4-10S or CA4-01S
Front mounting
4-pole CA4..S

Auxiliary
contact
blocks

Side mounting 2-pole CAL4-11S

Additional coil
terminal block LDC4S

BX4 For all 1-stack contactor relays
Protective covers
BX4-CA For 4-pole CA4..S auxiliary contact blocks
1SBC101678S0201

ABB | 6/67
