P. 690

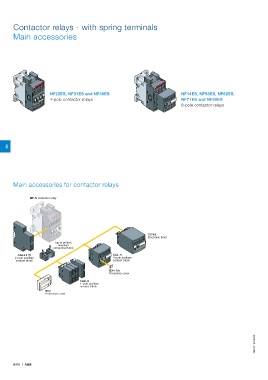

Contactor relays - with spring terminals

       Main accessories














                       NF22ES, NF31ES and NF40ES                                  NF44ES, NF53ES, NF62ES,
                       4-pole contactor relays                                    NF71ES and NF80ES
                                                                                  8-pole contactor relays










    6








       Main accessories for contactor relays


              NF..S contactor relay








                                                                   TEF4S
                                                                   Electronic timer
                         Top or bottom
                           mounted
                        coil terminal block
         CAL4-11S                                  CA4..S
        2-pole auxiliary                           4-pole auxiliary
        contact block                              contact block
                                                  BX4-CA
                                                  Protective cover
                                     CA4..S
                                     1-pole auxiliary
                                     contact block
                     BX4
                     Protective cover









                                                                                                                  1SBC101678S0201






       6/66  |  ABB
