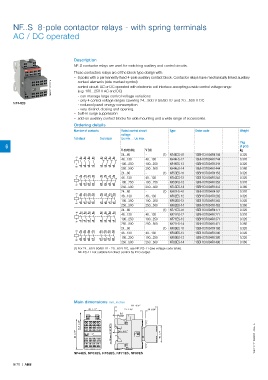

NF..S 8-pole contactor relays - with spring terminals

AC / DC operated

Description
NF..S contactor relays are used for switching auxiliary and control circuits.
These contactors relays are of the block type design with:
– 8 poles with a permanently fixed 4-pole auxiliary contact block. Contactor relays have mechanically linked auxiliary
contact elements (side-marked symbol)
1SBC101107F0014 – control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC)
- can manage large control voltage variations
- only 4 control voltage ranges covering 24...500 V 50/60 Hz and 20...500 V DC
NF44ES - reduced panel energy consumption
- very distinct closing and opening.
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
Number of contacts Rated control circuit Type Order code Weight
voltage
1st stack 2nd stack Uc min. ... Uc max.
Pkg
6 (1 pce)
V 50/60 Hz V DC kg
24...60 - (1) NF44ES-41 1SBH137004R4144 0.320
A1 13 23 33 43 51 61 71 81
NO NO NO NO NC NC NC NC 48...130 48...130 NF44ES-12 1SBH137004R1244 0.320
100...250 100...250 NF44ES-13 1SBH137004R1344 0.320
NO NO NO NO NC NC NC NC
A2 14 24 34 44 52 62 72 82
250...500 250...500 NF44ES-14 1SBH137004R1444 0.360
24...60 - (1) NF53ES-41 1SBH137004R4153 0.320
A1 13 23 33 43 53 61 71 81
NO NO NO NO NO NC NC NC 48...130 48...130 NF53ES-12 1SBH137004R1253 0.320
100...250 100...250 NF53ES-13 1SBH137004R1353 0.320
NO NO NO NO NO NC NC NC
A2 14 24 34 44 54 62 72 82
250...500 250...500 NF53ES-14 1SBH137004R1453 0.360
24...60 - (1) NF62ES-41 1SBH137004R4162 0.320
A1 13 23 33 43 53 61 71 83
NO NO NO NO NO NC NC NO
48...130 48...130 NF62ES-12 1SBH137004R1262 0.320
100...250 100...250 NF62ES-13 1SBH137004R1362 0.320
NO NO NO NO NO NC NC NO
A2 14 24 34 44 54 62 72 84
250...500 250...500 NF62ES-14 1SBH137004R1462 0.360
24...60 - (1) NF71ES-41 1SBH137004R4171 0.320
A1 13 23 33 43 53 61 73 83
NO NO NO NO NO NC NO NO 48...130 48...130 NF71ES-12 1SBH137004R1271 0.320
100...250 100...250 NF71ES-13 1SBH137004R1371 0.320
NO NO NO NO NO NC NO NO
A2 14 24 34 44 54 62 74 84
250...500 250...500 NF71ES-14 1SBH137004R1471 0.360
24...60 - (1) NF80ES-41 1SBH137004R4180 0.320
A1 13 23 33 43 53 63 73 83
NO NO NO NO NO NO NO NO 48...130 48...130 NF80ES-12 1SBH137004R1280 0.320
100...250 100...250 NF80ES-13 1SBH137004R1380 0.320
NO NO NO NO NO NO NO NO
A2 14 24 34 44 54 64 74 84
250...500 250...500 NF80ES-14 1SBH137004R1480 0.360
(1) For 24...60 V 50/60 Hz - 20...60 V DC, use NF..ES-11 (see voltage code table).
NF..ES-11 not suitable for direct control by PLC-output.

Main dimensions mm, inches
111 4.37"
45 1.77" 71 2.79" 10 0.39"
5.5
0.22"
11.5 0.45"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 45 1.77" 1SBC101713S0201 - Rev. A

NF44ES, NF53ES, NF62ES, NF71ES, NF80ES
