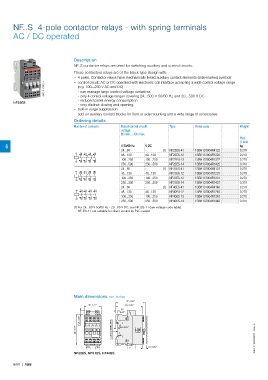

NF..S 4-pole contactor relays - with spring terminals

AC / DC operated

Description
NF..S contactor relays are used for switching auxiliary and control circuits.
These contactors relays are of the block type design with:
– 4 poles. Contactor relays have mechanically linked auxiliary contact elements (side-marked symbol)
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
1SBC101106F0014 (e.g. 100...250 V AC and DC)
- can manage large control voltage variations
- only 4 control voltage ranges covering 24...500 V 50/60 Hz and 20...500 V DC
- reduced panel energy consumption
NF22ES
- very distinct closing and opening.
– built-in surge suppression
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
Number of contacts Rated control circuit Type Order code Weight
voltage
Uc min. ... Uc max.
Pkg
(1 pce)
6 V 50/60 Hz V DC kg
24...60 - (1) NF22ES-41 1SBH137004R4122 0.270
A1 13 21 31 43
NO NC NC NO 48...130 48...130 NF22ES-12 1SBH137004R1222 0.270
100...250 100...250 NF22ES-13 1SBH137004R1322 0.270
NO NC NC NO
A2 14 22 32 44
250...500 250...500 NF22ES-14 1SBH137004R1422 0.310
24...60 - (1) NF31ES-41 1SBH137004R4131 0.270
A1 13 21 33 43
NO NC NO NO 48...130 48...130 NF31ES-12 1SBH137004R1231 0.270
100...250 100...250 NF31ES-13 1SBH137004R1331 0.270
NO NC NO NO
A2 14 22 34 44
250...500 250...500 NF31ES-14 1SBH137004R1431 0.310
24...60 - (1) NF40ES-41 1SBH137004R4140 0.270
A1 13 23 33 43
NO NO NO NO 48...130 48...130 NF40ES-12 1SBH137004R1240 0.270
100...250 100...250 NF40ES-13 1SBH137004R1340 0.270
NO NO NO NO
A2 14 24 34 44
250...500 250...500 NF40ES-14 1SBH137004R1440 0.310
(1) For 24...60 V 50/60 Hz - 20...60 V DC, use NF..ES-11 (see voltage code table).
NF..ES-11 not suitable for direct control by PLC-output.

Main dimensions mm, inches
77 3.03"
45 1.77" 71 2.79"
5.5
0.22"
11.5 0.45"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22"

10 0.39" 1SBC101691S0201 - Rev. A
NF22ES, NF31ES, NF40ES
