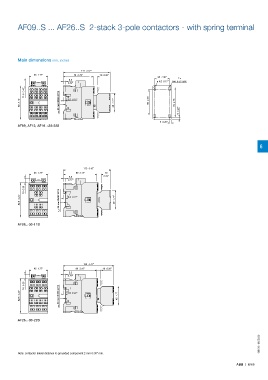

AF09..S ... AF26..S 2-stack 3-pole contactors - with spring terminal

Main dimensions mm, inches

111 4.37"
110.5 4.35"
45 1.77" 71 2.79" 10 0.39"
45 1.77" 71 2.80" 10 0.39" 35 1.38" 2 x
5.5 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
0.22"
11.5 0.45" 6 0.24"
80 3.15" 80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22" 45 1.77" 43 1.69" 60 2.36" 70 2.76"

5 0.20"

5 0.20"
AF09, AF12, AF16..-30-22S

6

113 4.45"
45 1.77" 80 3.15" 10
5.5 0.39"
0.22"
10 0.39"

82.5 3.24" 35 mm EN/IEC 60715 5.5 0.22" 45 1.77"

AF26..-30-11S

120 4.72"
45 1.77" 80 3.15" 10 0.39"
5.5
0.22"
10 0.39"
82.5 3.24" 35 mm EN/IEC 60715 5.5 0.22" 45 1.77"

AF26..-30-22S

1SBC101665S0201

Note: contactor lateral distance to grounded component 2 mm 0.08" min.
