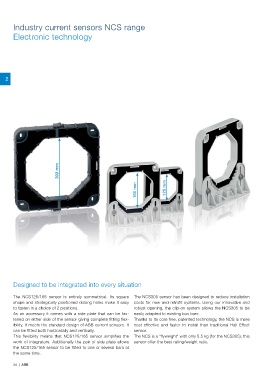

Industry current sensors NCS range
Electronic technology
2
302 mm
165 mm 125 mm
Designed to be integrated into every situation
The NCS125/165 sensor is entirely symmetrical. Its square The NCS305 sensor has been designed to reduce installation
shape and strategically positioned oblong holes make it easy costs for new and retrofit systems. Using our innovative and
to fasten in a choice of 2 positions. robust opening, the clip-on system allows the NCS305 to be
As an accessory it comes with a side plate that can be fas- easily adapted to existing bus bars.
tened on either side of the sensor giving complete fitting flex- Thanks to its core free, patented technology, the NCS is more
ibility. It meets the standard design of ABB current sensors. It cost effective and faster to install than traditional Hall Effect
can be fitted both horizontally and vertically. sensor.
This flexibility means that NCS125/165 sensor simplifies the The NCS is a "flyweight" with only 5.5 kg (for the NCS305), this
work of integrators. Additionally the pair of side plate allows sensor offer the best rating/weight ratio.
the NCS125/165 sensor to be fitted to one or several bars at
the same time.
