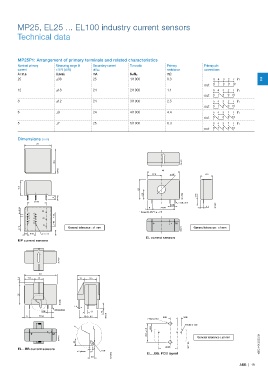

MP25, EL25 ... EL100 industry current sensors
Technical data

MP25P1: Arrangement of primary terminals and related characteristics
Nominal primary Measuring range @ Secondary current Turn ratio Primary Primary pin
current ±15 V (±5%) at I PN resistance connections
A r.m.s. A peak mA N P/N S mΩ
25 ±36 25 1/1000 0.3 in 2
out
12 ±18 24 2/1000 1.1 in
out
8 ±12 24 3/1000 2.5 in
out
6 ±9 24 4/1000 4.4 in
out
5 ±7 25 5/1000 6.3 in
out

Dimensions (mm)
29

26.4 G0145D
G0142D 40
17.5 ø 10* 15.5

16.5 25
12.5 4.75
G0143D
5 G0146DG
20.32
0.6 x 0.7
5.08 4.1 G0148D
27.94
6
4 x 2.54 M * Except EL 25 P1: ø = 7.5
4 5 6 7 7.62
3 8 +15
2 9
1 10 7.62 + - M
–15
8.12 General tolerance : ±1 mm G0147D General tolerance : ±1 mm
G0144D
3.5 8.89 ø 1 x 13
EL current sensors
MP current sensors
G0149D

40
3.1 11.5 12 9.1 15.5

25
G0150D
1.6
0.6 x 0.7
5.08 4.1
4.75
6 27.94 G0152D 8.89 5.08
2 Holes ø 3.6
3 Holes ø 1.02
10.9
+ - M 23.0 ± 0.2
G0151D General tolerance : ±1 mm
4.4 1SBC140005S0201
22.86 G0171DG
EL…BB current sensors
x 2 places r. 0.8 EL…BB: PCB layout
G0153DG
3.0
