2

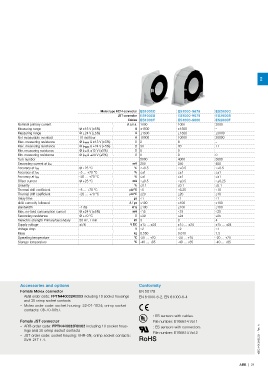

Molex type HE14 connector ES1000C ES1000-9678 ES2000C
JST connector ES1000S ES1000-9679 ES2000S
Cables ES1000F ES1000-9680 ES2000F
Nominal primary current A r.m.s. 1000 1000 2000
Measuring range @ ±15 V (±5%) A ±1500 ±1500 –
Measuring range @ ±24 V (±5%) A ±1500 ±1500 ±3000
Not measurable overload 10 ms/hour A 10000 10000 20000
Max. measuring resistance @ I PMAX & ±15 V (±5%) Ω 2 8 –
Max. measuring resistance @ I PMAX & ±24 V (±5%) Ω 30 30 11
Min. measuring resistance @ I PN & ±15 V (±5%) Ω 0 0 –
Min. measuring resistance @ I PN & ±24 V (±5%) Ω 0 0 0
Turn number 5000 4000 5000
mA 200 250 400
Secondary current at I PN
@ +25 °C % ≤±0.5 ≤±0.5 ≤±0.5
Accuracy at I PN
Accuracy at I PN -5 … +70 °C % ≤±1 ≤±1 ≤±1
Accuracy at I PN -20 … +70 °C % ≤±1 ≤±1 ≤±1
Offset current @ +25 °C mA ≤±0.5 ≤±0.5 ≤±0.25
Linearity % ≤0.1 ≤0.1 ≤0.1
Thermal drift coefficient -5 … +70 °C μA/°C ≤5 ≤6.25 ≤10
Thermal drift coefficient -20 … +70 °C μA/°C ≤20 ≤20 ≤10
Delay time μs ≤1 ≤1 ≤1
di/dt correctly followed A / μs ≤100 ≤100 ≤100
Bandwidth -1 dB kHz ≤100 ≤100 ≤100
Max. no-load consumption current @ ±24 V (±5%) mA ≤15 ≤15 ≤25
Secondary resistance @ +70 °C Ω ≤39 ≤24 ≤25
Dielectric strength Primary/Secondary 50 Hz, 1 min kV 3 3 4
Supply voltage ±5% V DC ±15 … ±24 ±15 … ±24 ±15 … ±24
Voltage drop V ≤2 ≤2 ≤1
Mass kg 0.550 0.610 1.5
Operating temperature °C -20 … +70 -20 … +70 -20 … +70
Storage temperature °C -40 … +85 -40 … +85 -40 … +85

Accessories and options Conformity
Female Molex connector EN 50178
– ABB order code: FPTN440032R0003 including 10 socket housings EN 61000-6-2, EN 61000-6-4
and 30 crimp socket contacts
– Molex order code: socket housing: 22-01-1034; crimp socket
contacts: 08-70-0057.
: ES sensors with cables.
Female JST connector File number: E166814 Vol 1
– ABB order code: FPTN440032R0002 including 10 socket hous- : ES sensors with connectors.
ings and 30 crimp socket contacts
File number: E166814 Vol 2
– JST order code: socket housing: VHR-3N; crimp socket contacts:
SVH-21T-1.1. RoHS 1SBC140006S0201 - Rev. A
