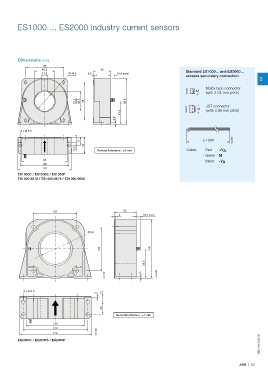

Page 25 - Current & voltage sensors catalog

ES1000 ... ES2000 industry current sensors

Dimensions (mm)
78
40.3 35 Standard ES1000... and ES2000…
12.2 Ø 40.2 2.5 10.5 maxi
sensors secondary connection
2
– Molex type connector
G0092D M (with 2.54 mm pitch)
+
12.2 40.3 78 94.5
– JST connector
G0091D M (with 3.96 mm pitch)
47.5 +
3.8

6 x Ø 5.3

17 L = 200 G0090D
34
12.5 General tolerance : ±1 mm Cable: - Red +V A
- Green M
94 - Black -V A
100
110
ES1000C / ES1000S / ES1000F
ES1000-9678 / ES1000-9679 / ES1000-9680

102 52
4 10.5 maxi

Ø 64

102 136

68.5

G0106D1 G0106D1 4 G0106D2 G0106D2

8 x Ø 6.5
3 11

30
General tolerance : ±1 mm
135
152
G0106D3 G0106D3
170
1SBC140009S0201
ES2000C / ES2000S / ES2000F

ABB | 23
